Bohrreibahle VHM TiAlN 5xD IK H7 140° WN/DIN6535-HA D6mm
Compare
| Beschichtung: | TiAlN |
|---|---|
| Drallrichtung: | rechts |
| Einsatz: | Stahlwerkstoffe, Gusseisen und Aluminium |
| Einsatzgebiet: | Gusseisen, Nichteisenmetalle, Stahl |
| Form des Schaftes: | zylinder |
| IK: | mit Kühlschmierstoff-Austritt axial konzentrisch |
| Material: | VHM |
| Norm: | Werksnorm |
| Schaft: | HA |
| Schneidrichtung: | rechts |
| Spitzenwinkel (°): | 140 |
| Tol-: | H7 |
| Z: | 2 |
| x D: | 5 |
Variants

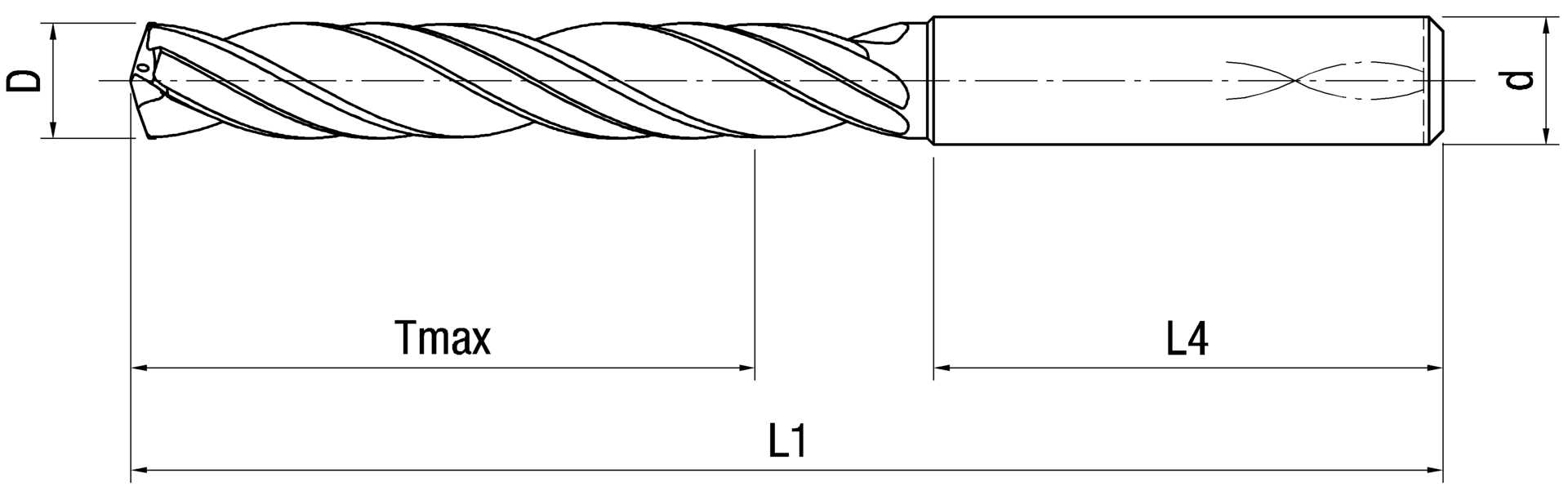

| Position | Code | d (mm) | L1 (mm) | D (mm) | Tmax (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 |
|
118474,99 | 6 | 82 | 4,99 | 44 | 1 piece |
€157.32
|
|||
| 22 |
|
118479,99 | 10 | 103 | 9,99 | 61 | 1 piece |
€223.60
|
|||
| 32 |
|
1184716 | 16 | 133 | 16 | 83 | 1 Stück |
€541.33
|
|||
| 33 |
|
1184718 | 18 | 143 | 18 | 93 | 1 piece |
€753.15
|
|||
| 9 |
|
118475,01 | 6 | 82 | 5,01 | 44 | 1 piece |
€157.32
|
|||
| 12 |
|
118475,99 | 6 | 81 | 5,99 | 44 | 1 piece |
€157.32
|
|||
| 2 |
|
118473,99 | 6 | 74 | 3,99 | 36 | 1 piece |
€157.32
|
|||
| 20 |
|
118478,02 | 8 | 91 | 8,02 | 53 | 1 piece |
€157.32
|
|||
| 4 |
|
118474,01 | 6 | 74 | 4,01 | 36 | 1 piece |
€157.32
|
|||
| 3 |
|
118474 | 6 | 74 | 4 | 36 | 1 Stück |
€157.32
|
|||
| 34 |
|
1184720 | 20 | 153 | 20 | 101 | 1 piece |
€913.68
|
|||
| 11 |
|
118475,98 | 6 | 81 | 5,98 | 44 | 1 piece |
€157.32
|
|||
| 27 |
|
1184711,99 | 23 | 118 | 11,99 | 71 | 1 piece |
€321.18
|
|||
| 15 |
|
118476,02 | 6 | 81 | 6,02 | 44 | 1 piece |
€157.32
|
|||
| 13 |
|
118476 | 6 | 81 | 6 | 44 | 1 Stück |
€157.32
|
|||
| 23 |
|
1184710 | 10 | 103 | 10 | 61 | 1 Stück |
€223.60
|
|||
| 17 |
|
118477,99 | 8 | 91 | 7,99 | 53 | 1 piece |
€157.32
|
|||
| 26 |
|
1184711,98 | 12 | 118 | 11,98 | 71 | 1 piece |
€321.18
|
|||
| 25 |
|
1184710,02 | 10 | 103 | 10,02 | 61 | 1 piece |
€223.60
|
|||
| 1 |
|
118473,98 | 6 | 74 | 3,98 | 36 | 1 piece |
€157.32
|
|||
| 5 |
|
118474,02 | 6 | 74 | 4,02 | 36 | 1 piece |
€157.32
|
|||
| 16 |
|
118477,98 | 8 | 91 | 7,98 | 53 | 1 piece |
€157.32
|
|||
| 10 |
|
118475,02 | 6 | 82 | 5,02 | 44 | 1 piece |
€157.32
|
|||
| 31 |
|
1184714 | 14 | 124 | 14 | 77 | 1 piece |
€437.09
|
|||
| 19 |
|
118478,01 | 8 | 91 | 8,01 | 53 | 1 piece |
€157.32
|
|||
| 8 |
|
118475 | 6 | 82 | 5 | 44 | 1 Stück |
€157.32
|
|||
| 29 |
|
1184712,01 | 12 | 118 | 12,01 | 71 | 1 piece |
€321.18
|
|||
| 24 |
|
1184710,01 | 10 | 103 | 10,01 | 61 | 1 piece |
€223.60
|
|||
| 28 |
|
1184712 | 12 | 118 | 12 | 71 | 1 Stück |
€321.18
|
|||
| 6 |
|
118474,98 | 6 | 82 | 4,98 | 44 | 1 piece |
€157.32
|
|||
| 14 |
|
118476,01 | 6 | 81 | 6,01 | 44 | 1 piece |
€157.32
|
|||
| 21 |
|
118479,98 | 10 | 103 | 9,98 | 61 | 1 piece |
€223.60
|
|||
| 30 |
|
1184712,02 | 12 | 118 | 12,02 | 71 | 1 piece |
€321.18
|
|||
| 18 |
|
118478 | 8 | 91 | 8 | 53 | 1 Stück |
€157.32
|
