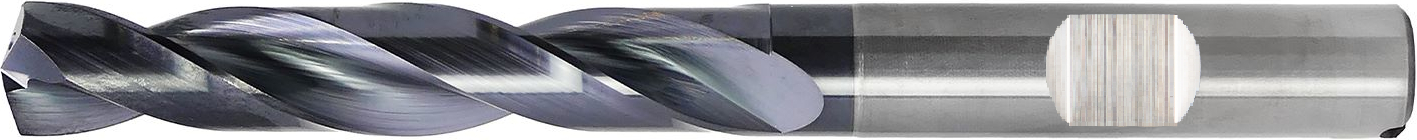

Hochleistungsbohrer VHM EYL+ 5xD IK Typ U 140° DIN6537L DIN6535-HB D3,3mm
Compare
| Beschichtung: | EYL+ Doppelbeschichtung |
|---|---|
| Einsatz: | Stähle bis 1200 N/mm², Kohlenstoffstähle, Bronze, Guss und hochlegierte AlSi-Legierungen |
| Einsatzgebiet: | cast iron, steel |
| IK: | mit Kühlschmierstoff-Austritt axial konzentrisch |
| Material: | VHM |
| Norm: | DIN 6537-L |
| Schaft: | HB |
| Spitzenwinkel (°): | 140 |
| Z: | 2 |
| x D: | 5 |
Variants
| Position | Code | d (mm) | L1 (mm) | L4 (mm) | D (mm) | Tmax (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 77 |
|
118428,3 | 10 | 103 | 40 | 8,3 | 49 | 1 pices |
€53.55
|
|||
| 79 |
|
118428,5 | 10 | 103 | 40 | 8,5 | 49 | 1 pices |
€53.55
|
|||
| 84 |
|
118429 | 10 | 103 | 40 | 9 | 49 | 1 pices |
€53.55
|
|||
| 142 |
|
1184214,8 | 16 | 133 | 48 | 14,8 | 63 | 1 piece |
€129.71
|
|||
| 48 |
|
118425,5 | 6 | 82 | 36 | 5,5 | 35 | 1 pices |
€34.51
|
|||
| 103 |
|
1184210,9 | 12 | 118 | 45 | 10,9 | 56 | 1 pices |
€77.35
|
|||
| 97 |
|
1184210,3 | 12 | 118 | 45 | 10,3 | 56 | 1 pices |
€77.35
|
|||
| 122 |
|
1184212,8 | 14 | 124 | 45 | 12,8 | 60 | 1 piece |
€94.01
|
|||
| 151 |
|
1184215,7 | 16 | 133 | 48 | 15,7 | 63 | 1 pices |
€129.71
|
|||
| 53 |
|
118425,9 | 6 | 82 | 36 | 5,9 | 35 | 1 pices |
€34.51
|
|||
| 86 |
|
118429,2 | 10 | 103 | 40 | 9,2 | 49 | 1 pices |
€53.55
|
|||
| 36 |
|
118424,4 | 6 | 74 | 36 | 4,4 | 29 | 1 pices |
€34.51
|
|||
| 51 |
|
118425,7 | 6 | 82 | 36 | 5,7 | 35 | 1 pices |
€34.51
|
|||
| 82 |
|
118428,8 | 10 | 103 | 40 | 8,8 | 49 | 1 pices |
€53.55
|
|||
| 26 |
|
118423,4 | 6 | 66 | 36 | 3,4 | 23 | 1 pices |
€34.51
|
|||
| 124 |
|
1184213 | 14 | 124 | 45 | 13 | 60 | 1 pices |
€94.01
|
|||
| 45 |
|
118425,2 | 6 | 82 | 36 | 5,2 | 35 | 1 pices |
€34.51
|
|||
| 146 |
|
1184215,2 | 16 | 133 | 48 | 15,2 | 63 | 1 pices |
€129.71
|
|||
| 102 |
|
1184210,8 | 12 | 118 | 45 | 10,8 | 56 | 1 pices |
€77.35
|
|||
| 74 |
|
118428 | 8 | 91 | 36 | 8 | 43 | 1 pices |
€46.41
|
|||
| 52 |
|
118425,8 | 6 | 82 | 36 | 5,8 | 35 | 1 pices |
€34.51
|
|||
| 67 |
|
118427,3 | 8 | 91 | 36 | 7,3 | 43 | 1 pices |
€46.41
|
|||
| 113 |
|
1184211,9 | 12 | 118 | 45 | 11,9 | 56 | 1 pices |
€77.35
|
|||
| 112 |
|
1184211,8 | 12 | 118 | 45 | 11,8 | 56 | 1 pices |
€77.35
|
|||
| 96 |
|
1184210,2 | 12 | 118 | 45 | 10,2 | 56 | 1 pices |
€77.35
|
|||
| 164 |
|
1184217 | 18 | 143 | 48 | 17 | 71 | 1 pices |
€165.41
|
|||
| 93 |
|
118429,9 | 10 | 103 | 40 | 9,9 | 49 | 1 pices |
€53.55
|
|||
| 62 |
|
118426,8 | 8 | 91 | 36 | 6,8 | 43 | 1 pices |
€46.41
|
|||
| 99 |
|
1184210,5 | 12 | 118 | 45 | 10,5 | 56 | 1 pices |
€77.35
|
|||
| 63 |
|
118426,9 | 8 | 91 | 36 | 6,9 | 43 | 1 pices |
€46.41
|
|||
| 58 |
|
118426,4 | 8 | 91 | 36 | 6,4 | 43 | 1 pices |
€46.41
|
|||
| 71 |
|
118427,7 | 8 | 91 | 36 | 7,7 | 43 | 1 pices |
€46.41
|
|||
| 35 |
|
118424,3 | 6 | 74 | 36 | 4,3 | 29 | 1 pices |
€34.51
|
|||
| 92 |
|
118429,8 | 10 | 103 | 40 | 9,8 | 49 | 1 pices |
€53.55
|
|||
| 105 |
|
1184211,1 | 12 | 118 | 45 | 11,1 | 56 | 1 pices |
€77.35
|
|||
| 149 |
|
1184215,5 | 16 | 133 | 48 | 15,5 | 63 | 1 pices |
€129.71
|
|||
| 116 |
|
1184212,2 | 14 | 124 | 45 | 12,2 | 60 | 1 pices |
€94.01
|
|||
| 47 |
|
118425,4 | 6 | 82 | 36 | 5,4 | 35 | 1 pices |
€34.51
|
|||
| 184 |
|
1184219 | 20 | 153 | 50 | 19 | 77 | 1 pices |
€201.11
|
|||
| 104 |
|
1184211 | 12 | 118 | 45 | 11 | 56 | 1 pices |
€77.35
|
|||
| 30 |
|
118423,8 | 6 | 74 | 36 | 3,8 | 29 | 1 pices |
€34.51
|
|||
| 95 |
|
1184210,1 | 12 | 118 | 45 | 10,1 | 56 | 1 pices |
€77.35
|
|||
| 111 |
|
1184211,7 | 12 | 118 | 45 | 11,7 | 56 | 1 pices |
€77.35
|
|||
| 70 |
|
118427,6 | 8 | 91 | 36 | 7,6 | 43 | 1 pices |
€46.41
|
|||
| 25 |
|
118423,3 | 6 | 66 | 36 | 3,3 | 23 | 1 pices |
€34.51
|
|||
| 40 |
|
118424,7 | 6 | 74 | 36 | 4,7 | 29 | 1 pices |
€34.51
|
|||
| 64 |
|
118427 | 8 | 91 | 36 | 7 | 43 | 1 pices |
€46.41
|
|||
| 85 |
|
118429,1 | 10 | 103 | 40 | 9,1 | 49 | 1 pices |
€53.55
|
|||
| 73 |
|
118427,9 | 8 | 91 | 36 | 7,9 | 43 | 1 pices |
€46.41
|
|||
| 131 |
|
1184213,7 | 14 | 124 | 45 | 13,7 | 60 | 1 pices |
€94.01
|
|||
| 33 |
|
118424,1 | 6 | 74 | 36 | 4,1 | 29 | 1 pices |
€34.51
|
|||
| 61 |
|
118426,7 | 8 | 91 | 36 | 6,7 | 43 | 1 pices |
€46.41
|
|||
| 91 |
|
118429,7 | 10 | 103 | 40 | 9,7 | 49 | 1 pices |
€53.55
|
|||
| 87 |
|
118429,3 | 10 | 103 | 40 | 9,3 | 49 | 1 pices |
€53.55
|
|||
| 69 |
|
118427,5 | 8 | 91 | 36 | 7,5 | 43 | 1 pices |
€46.41
|
|||
| 94 |
|
1184210 | 10 | 103 | 40 | 10 | 49 | 1 pices |
€53.55
|
|||
| 32 |
|
118424 | 6 | 74 | 36 | 4 | 29 | 1 pices |
€34.51
|
|||
| 66 |
|
118427,2 | 8 | 91 | 36 | 7,2 | 43 | 1 pices |
€46.41
|
|||
| 46 |
|
118425,3 | 6 | 82 | 36 | 5,3 | 35 | 1 pices |
€34.51
|
|||
| 55 |
|
118426,1 | 8 | 91 | 36 | 6,1 | 43 | 1 pices |
€46.41
|
|||
| 57 |
|
118426,3 | 8 | 91 | 36 | 6,3 | 43 | 1 pices |
€46.41
|
|||
| 144 |
|
1184215 | 16 | 133 | 48 | 15 | 63 | 1 pices |
€129.71
|
|||
| 179 |
|
1184218,5 | 20 | 153 | 50 | 18,5 | 77 | 1 pices |
€201.11
|
|||
| 89 |
|
118429,5 | 10 | 103 | 40 | 9,5 | 49 | 1 pices |
€53.55
|
|||
| 72 |
|
118427,8 | 8 | 91 | 36 | 7,8 | 43 | 1 pices |
€46.41
|
|||
| 132 |
|
1184213,8 | 14 | 124 | 45 | 13,8 | 60 | 1 piece |
€94.01
|
|||
| 38 |
|
118424,6 | 6 | 74 | 36 | 4,6 | 29 | 1 pices |
€34.51
|
|||
| 27 |
|
118423,5 | 6 | 66 | 36 | 3,5 | 23 | 1 pices |
€34.51
|
|||
| 169 |
|
1184217,5 | 18 | 143 | 48 | 17,5 | 71 | 1 pices |
€165.41
|
|||
| 41 |
|
118424,8 | 6 | 82 | 36 | 4,8 | 35 | 1 pices |
€34.51
|
|||
| 75 |
|
118428,1 | 10 | 103 | 40 | 8,1 | 49 | 1 pices |
€53.55
|
|||
| 44 |
|
118425,1 | 6 | 82 | 36 | 5,1 | 35 | 1 pices |
€34.51
|
|||
| 159 |
|
1184216,5 | 18 | 143 | 48 | 16,5 | 71 | 1 pices |
€165.41
|
|||
| 42 |
|
118424,9 | 6 | 82 | 36 | 4,9 | 35 | 1 pices |
€34.51
|
|||
| 68 |
|
118427,4 | 8 | 91 | 36 | 7,4 | 43 | 1 pices |
€46.41
|
|||
| 119 |
|
1184212,5 | 12 | 124 | 45 | 12,5 | 60 | 1 pices |
€94.01
|
|||
| 108 |
|
1184211,4 | 12 | 118 | 45 | 11,4 | 56 | 1 pices |
€77.35
|
|||
| 110 |
|
1184211,6 | 12 | 118 | 45 | 11,6 | 56 | 1 pices |
€77.35
|
|||
| 34 |
|
118424,2 | 6 | 74 | 36 | 4,2 | 29 | 1 pices |
€34.51
|
|||
| 22 |
|
118423,1 | 6 | 66 | 36 | 3,1 | 23 | 1 pices |
€34.51
|
|||
| 28 |
|
118423,6 | 6 | 66 | 36 | 3,6 | 23 | 1 pices |
€34.51
|
|||
| 60 |
|
118426,6 | 8 | 91 | 36 | 6,6 | 43 | 1 pices |
€46.41
|
|||
| 23 |
|
118423,2 | 6 | 66 | 36 | 3,2 | 23 | 1 pices |
€34.51
|
|||
| 50 |
|
118425,6 | 6 | 82 | 36 | 5,6 | 35 | 1 pices |
€34.51
|
|||
| 107 |
|
1184211,3 | 12 | 118 | 45 | 11,3 | 56 | 1 pices |
€77.35
|
|||
| 54 |
|
118426 | 6 | 82 | 36 | 6 | 35 | 1 pices |
€34.51
|
|||
| 56 |
|
118426,2 | 8 | 91 | 36 | 6,2 | 43 | 1 pices |
€46.41
|
|||
| 134 |
|
1184214 | 14 | 124 | 45 | 14 | 60 | 1 pices |
€94.01
|
|||
| 101 |
|
1184210,7 | 12 | 118 | 45 | 10,7 | 56 | 1 pices |
€77.35
|
|||
| 100 |
|
1184210,6 | 12 | 118 | 45 | 10,6 | 56 | 1 pices |
€77.35
|
|||
| 90 |
|
118429,6 | 10 | 103 | 40 | 9,6 | 49 | 1 pices |
€53.55
|
|||
| 80 |
|
118428,6 | 10 | 103 | 40 | 8,6 | 49 | 1 pices |
€53.55
|
|||
| 59 |
|
118426,5 | 8 | 91 | 36 | 6,5 | 43 | 1 pices |
€46.41
|
|||
| 139 |
|
1184214,5 | 16 | 133 | 48 | 14,5 | 63 | 1 pices |
€129.71
|
|||
| 109 |
|
1184211,5 | 12 | 118 | 45 | 11,5 | 56 | 1 pices |
€77.35
|
|||
| 37 |
|
118424,5 | 6 | 74 | 36 | 4,5 | 29 | 1 pices |
€34.51
|
|||
| 78 |
|
118428,4 | 10 | 103 | 40 | 8,4 | 49 | 1 pices |
€53.55
|
|||
| 81 |
|
118428,7 | 10 | 103 | 40 | 8,7 | 49 | 1 pices |
€53.55
|
|||
| 141 |
|
1184214,7 | 16 | 133 | 48 | 14,7 | 63 | 1 pices |
€129.71
|
|||
| 98 |
|
1184210,4 | 12 | 118 | 45 | 10,4 | 56 | 1 pices |
€77.35
|
|||
| 154 |
|
1184216 | 16 | 133 | 48 | 16 | 63 | 1 pices |
€129.71
|
|||
| 194 |
|
1184220 | 20 | 153 | 50 | 20 | 77 | 1 pices |
€201.11
|
|||
| 114 |
|
1184212 | 12 | 118 | 45 | 12 | 56 | 1 pices |
€77.35
|
|||
| 83 |
|
118428,9 | 10 | 103 | 40 | 8,9 | 49 | 1 pices |
€53.55
|
|||
| 121 |
|
1184212,7 | 14 | 124 | 45 | 12,7 | 60 | 1 pices |
€94.01
|
|||
| 152 |
|
1184215,8 | 16 | 133 | 48 | 15,8 | 63 | 1 piece |
€129.71
|
|||
| 106 |
|
1184211,2 | 12 | 118 | 45 | 11,2 | 56 | 1 pices |
€77.35
|
|||
| 189 |
|
1184219,5 | 20 | 153 | 50 | 19,5 | 77 | 1 pices |
€201.11
|
|||
| 174 |
|
1184218 | 18 | 143 | 48 | 18 | 71 | 1 pices |
€165.41
|
|||
| 88 |
|
118429,4 | 10 | 103 | 40 | 9,4 | 49 | 1 pices |
€53.55
|
|||
| 21 |
|
118423 | 6 | 66 | 36 | 3 | 23 | 1 pices |
€34.51
|
|||
| 43 |
|
118425 | 6 | 82 | 36 | 5 | 35 | 1 pices |
€34.51
|
|||
| 129 |
|
1184213,5 | 14 | 124 | 45 | 13,5 | 60 | 1 pices |
€94.01
|
|||
| 31 |
|
118423,9 | 6 | 74 | 36 | 3,9 | 29 | 1 pices |
€34.51
|
|||
| 29 |
|
118423,7 | 6 | 66 | 36 | 3,7 | 23 | 1 pices |
€34.51
|
|||
| 65 |
|
118427,1 | 8 | 91 | 36 | 7,1 | 43 | 1 pices |
€46.41
|
|||
| 76 |
|
118428,2 | 10 | 103 | 40 | 8,2 | 49 | 1 pices |
€53.55
|
