Hochleistungsreibahle VHM HR500D H7 IK TiAlN Durchgangsloch WN D8,5mm
Compare
| Ausführung: | Durchgangsloch |
|---|---|
| Beschichtung: | TiAlN |
| Drallrichtung: | rechts |
| Einsatz: | erzeugt sehr hohe Bohrungsqualitäten mit höchsten Schnittwerten bei höchster Prozesssicherheit und erheblicher Einsparung von Prozesskosten, der h6-gefertigte Schaft bringt den optimalen Rundlauf beim Einsatz im Hydrodehnspannfutter oder Schrumpffutter |
| Einstellbarkeit: | Nein |
| Form des Schaftes: | Zylinder |
| IK: | mit Kühlschmierstoff-Austritt axial |
| Material: | VHM |
| Norm: | Werksnorm |
| Schneidrichtung: | rechts |
| Tol-: | h6 |
Variants

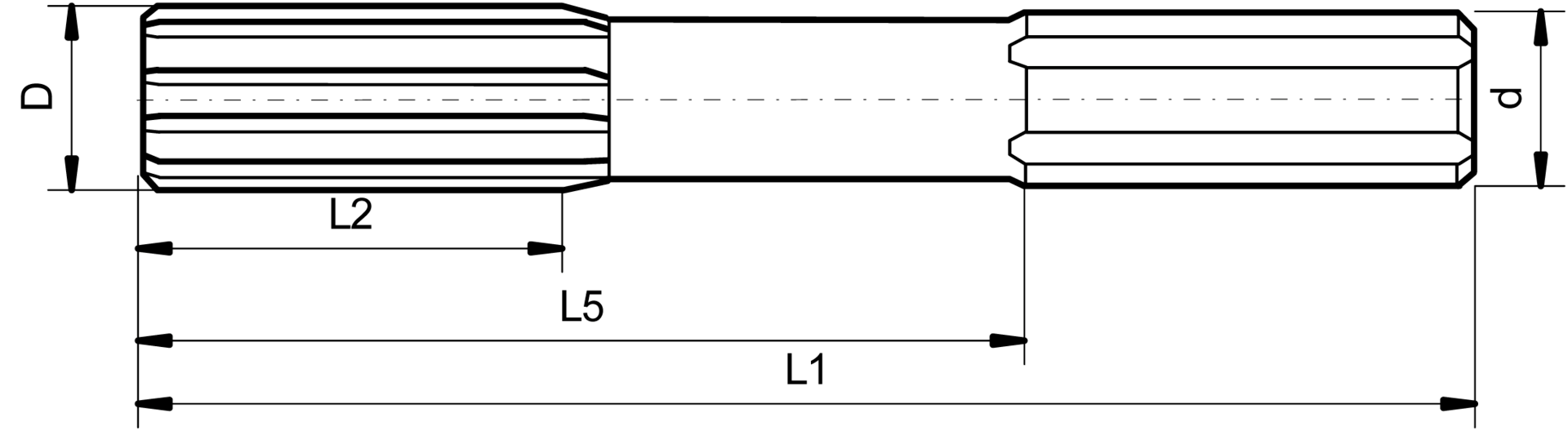

| Position | Code | d (mm) | L1 (mm) | Z | D (mm) | L5 (mm) | L2 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 39 |
|
131508,5 | 10 | 101 | 6 | 8,5 | 61 | 19 | 1 Stück |
€236.93
|
|||
| 29 |
|
131507 | 8 | 101 | 6 | 7 | 65 | 16 | 1 Stück |
€197.78
|
|||
| 56 |
|
1315011,98 | 12 | 130 | 6 | 11,98 | 85 | 19 | 1 Stück |
€379.61
|
|||
| 65 |
|
1315015 | 16 | 150 | 6 | 15 | 102 | 22 | 1 Stück |
€407.81
|
|||
| 9 |
|
131504,5 | 6 | 76 | 4 | 4,5 | 40 | 12 | 1 Stück |
€171.12
|
|||
| 61 |
|
1315012,02 | 12 | 130 | 6 | 12,02 | 85 | 19 | 1 Stück |
€379.61
|
|||
| 10 |
|
131504,97 | 6 | 76 | 4 | 4,97 | 40 | 12 | 1 Stück |
€188.26
|
|||
| 32 |
|
131507,98 | 8 | 101 | 6 | 7,98 | 65 | 16 | 1 Stück |
€205.51
|
|||
| 16 |
|
131505,02 | 6 | 76 | 4 | 5,02 | 40 | 12 | 1 Stück |
€188.26
|
|||
| 13 |
|
131505,00 | 6 | 76 | 4 | 5 | 40 | 12 | 1 piece |
€148.63
|
|||
| 64 |
|
1315014 | 14 | 130 | 6 | 14 | 85 | 22 | 1 Stück |
€407.81
|
|||
| 18 |
|
131505,5 | 6 | 76 | 4 | 5,5 | 40 | 12 | 1 Stück |
€171.12
|
|||
| 5 |
|
131504 | 4 | 68 | 4 | 4 | 40 | 12 | 1 Stück |
€171.12
|
|||
| 3 |
|
131503,99 | 4 | 68 | 4 | 3,99 | 40 | 12 | 1 Stück |
€183.50
|
|||
| 70 |
|
1315020 | 20 | 150 | 6 | 20 | 100 | 25 | 1 Stück |
€520.98
|
|||
| 38 |
|
131508,03 | 8 | 101 | 6 | 8,03 | 65 | 16 | 1 Stück |
€205.51
|
|||
| 31 |
|
131507,97 | 8 | 101 | 6 | 7,97 | 65 | 16 | 1 Stück |
€205.51
|
|||
| 24 |
|
131506,01 | 6 | 76 | 4 | 6,01 | 40 | 12 | 1 Stück |
€196.11
|
|||
| 40 |
|
131509,00 | 10 | 101 | 6 | 9 | 61 | 19 | 1 piece |
€188.50
|
|||
| 49 |
|
1315010,02 | 10 | 101 | 6 | 10,02 | 61 | 19 | 1 Stück |
€288.81
|
|||
| 20 |
|
131505,98 | 6 | 76 | 4 | 5,98 | 40 | 12 | 1 Stück |
€196.11
|
|||
| 12 |
|
131504,99 | 6 | 76 | 4 | 4,99 | 40 | 12 | 1 Stück |
€188.26
|
|||
| 42 |
|
131509,5 | 10 | 101 | 6 | 9,5 | 61 | 19 | 1 Stück |
€288.81
|
|||
| 25 |
|
131506,02 | 6 | 76 | 4 | 6,02 | 40 | 12 | 1 Stück |
€196.11
|
|||
| 68 |
|
1315018 | 18 | 150 | 6 | 18 | 102 | 25 | 1 Stück |
€486.35
|
|||
| 8 |
|
131504,03 | 4 | 68 | 4 | 4,03 | 40 | 12 | 1 Stück |
€183.50
|
|||
| 41 |
|
131509 | 10 | 101 | 6 | 9 | 61 | 19 | 1 Stück |
€222.89
|
|||
| 63 |
|
1315013 | 14 | 130 | 6 | 13 | 85 | 22 | 1 Stück |
€395.20
|
|||
| 28 |
|
131507,00 | 8 | 101 | 6 | 7 | 65 | 16 | 1 piece |
€167.43
|
|||
| 30 |
|
131507,5 | 8 | 101 | 6 | 7,5 | 65 | 16 | 1 Stück |
€205.51
|
|||
| 60 |
|
1315012,01 | 12 | 130 | 6 | 12,01 | 85 | 19 | 1 Stück |
€379.61
|
|||
| 37 |
|
131508,02 | 8 | 101 | 6 | 8,02 | 65 | 16 | 1 Stück |
€205.51
|
|||
| 57 |
|
1315011,99 | 12 | 130 | 6 | 11,99 | 85 | 19 | 1 Stück |
€379.61
|
|||
| 46 |
|
1315010,00 | 10 | 101 | 6 | 10 | 61 | 19 | 1 piece |
€233.72
|
|||
| 27 |
|
131506,5 | 8 | 101 | 6 | 6,5 | 65 | 16 | 1 Stück |
€208.73
|
|||
| 1 |
|
131503,97 | 4 | 68 | 4 | 3,97 | 40 | 12 | 1 Stück |
€183.50
|
|||
| 48 |
|
1315010,01 | 10 | 101 | 6 | 10,01 | 61 | 19 | 1 Stück |
€288.81
|
|||
| 62 |
|
1315012,03 | 12 | 130 | 6 | 12,03 | 85 | 19 | 1 Stück |
€379.61
|
|||
| 69 |
|
1315019 | 20 | 150 | 6 | 19 | 100 | 25 | 1 Stück |
€486.35
|
|||
| 11 |
|
131504,98 | 6 | 76 | 4 | 4,98 | 40 | 12 | 1 Stück |
€188.26
|
|||
| 19 |
|
131505,97 | 6 | 76 | 4 | 5,97 | 40 | 12 | 1 Stück |
€196.11
|
|||
| 2 |
|
131503,98 | 4 | 68 | 4 | 3,98 | 40 | 12 | 1 Stück |
€183.50
|
|||
| 14 |
|
131505 | 6 | 76 | 4 | 5 | 40 | 12 | 1 Stück |
€171.12
|
|||
| 59 |
|
1315012 | 12 | 130 | 6 | 12 | 85 | 19 | 1 Stück |
€367.59
|
|||
| 36 |
|
131508,01 | 8 | 101 | 6 | 8,01 | 65 | 16 | 1 Stück |
€205.51
|
|||
| 43 |
|
131509,97 | 10 | 101 | 6 | 9,97 | 61 | 19 | 1 Stück |
€288.81
|
|||
| 34 |
|
131508,00 | 8 | 101 | 6 | 8 | 65 | 16 | 1 piece |
€161.96
|
|||
| 52 |
|
1315011,00 | 12 | 130 | 6 | 11 | 85 | 19 | 1 piece |
€302.74
|
|||
| 47 |
|
1315010 | 10 | 101 | 6 | 10 | 61 | 19 | 1 Stück |
€276.08
|
|||
| 17 |
|
131505,03 | 6 | 76 | 4 | 5,03 | 40 | 12 | 1 Stück |
€188.26
|
|||
| 35 |
|
131508 | 8 | 101 | 6 | 8 | 65 | 16 | 1 Stück |
€191.35
|
|||
| 45 |
|
131509,99 | 10 | 101 | 6 | 9,99 | 61 | 19 | 1 Stück |
€288.81
|
|||
| 51 |
|
1315010,5 | 12 | 130 | 6 | 10,5 | 85 | 19 | 1 Stück |
€370.33
|
|||
| 21 |
|
131505,99 | 6 | 76 | 4 | 5,99 | 40 | 12 | 1 Stück |
€196.11
|
|||
| 54 |
|
1315011,5 | 12 | 130 | 6 | 11,5 | 85 | 19 | 1 Stück |
€379.61
|
|||
| 33 |
|
131507,99 | 8 | 101 | 6 | 7,99 | 65 | 16 | 1 Stück |
€205.51
|
|||
| 66 |
|
1315016 | 16 | 150 | 6 | 16 | 102 | 22 | 1 Stück |
€417.45
|
|||
| 22 |
|
131506,00 | 6 | 76 | 4 | 6 | 40 | 12 | 1 piece |
€154.11
|
|||
| 44 |
|
131509,98 | 10 | 101 | 6 | 9,98 | 61 | 19 | 1 Stück |
€288.81
|
|||
| 58 |
|
1315012,00 | 12 | 130 | 6 | 12 | 85 | 19 | 1 piece |
€310.71
|
|||
| 7 |
|
131504,02 | 4 | 68 | 4 | 4,02 | 40 | 12 | 1 Stück |
€183.50
|
|||
| 26 |
|
131506,03 | 6 | 76 | 4 | 6,03 | 40 | 12 | 1 Stück |
€196.11
|
|||
| 23 |
|
131506 | 6 | 76 | 4 | 6 | 40 | 12 | 1 Stück |
€171.12
|
|||
| 53 |
|
1315011 | 12 | 130 | 6 | 11 | 85 | 19 | 1 Stück |
€357.71
|
|||
| 15 |
|
131505,01 | 6 | 76 | 4 | 5,01 | 40 | 12 | 1 Stück |
€188.26
|
|||
| 67 |
|
1315017 | 18 | 150 | 6 | 17 | 102 | 25 | 1 Stück |
€417.45
|
|||
| 50 |
|
1315010,03 | 10 | 101 | 6 | 10,03 | 61 | 19 | 1 Stück |
€288.81
|
|||
| 6 |
|
131504,01 | 4 | 68 | 4 | 4,01 | 40 | 12 | 1 Stück |
€183.50
|
|||
| 55 |
|
1315011,97 | 12 | 130 | 6 | 11,97 | 85 | 19 | 1 Stück |
€379.61
|
|||
| 4 |
|
131504,00 | 4 | 68 | 4 | 4 | 40 | 12 | 1 piece |
€144.82
|
