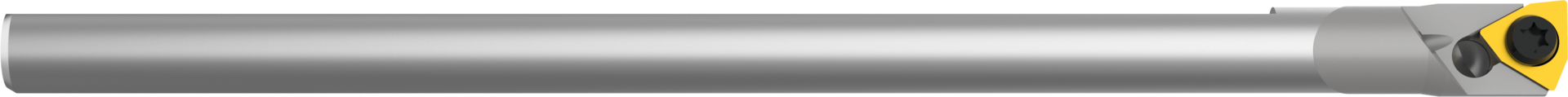

Klemmhalter Ø6-20mm HM längeneinstellbar für TOGT... A16-18 x1=112,0-147,0
Compare
| Einsatz: | über Reduzierbuchse (Art.-Nr. 12439...) in Feindrehwerkzeug (Art.-Nr. 12438...) |
|---|---|
| IK: | mit Kühlschmierstoff-Austritt axial |
| Material: | HM |
Variants

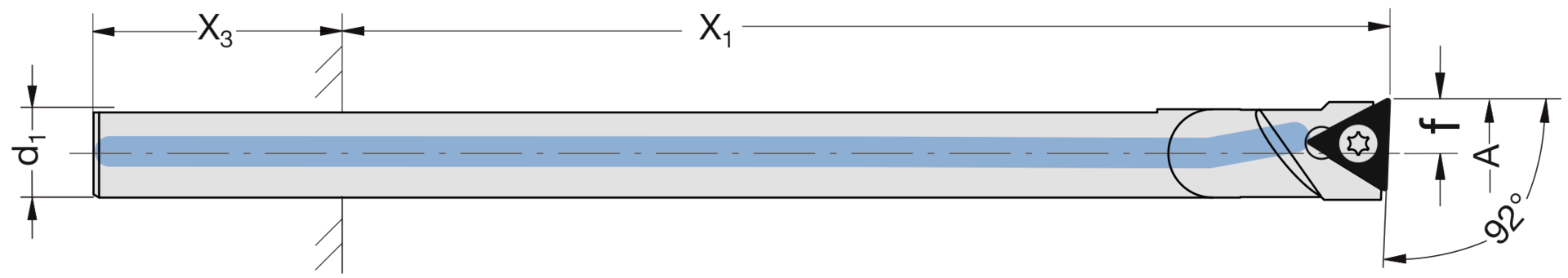

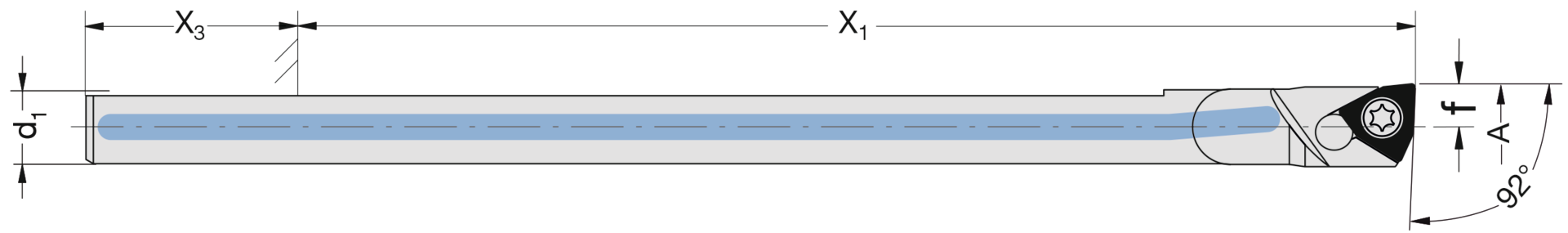

| Position | Code | A (mm) | x3 (mm) | f (mm) | Passend zu | x1 (mm) | d1 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 |
|
124437 | 16 - 18 | 30 | 8 | WSP TO.. 0802.. | 112 - 147 | 14 | 1 Stück |
€730.66
|
|||
| 3 |
|
1244383 | 10 - 12 | 25 | 5 | WSP CC..0602.. | 22 - 92 | 8 | 1 Stück |
€386.75
|
|||
| 6 |
|
124436 | 16 - 18 | 30 | 8 | WSP TO.. 0802.. | 77 - 112 | 14 | 1 Stück |
€709.24
|
|||
| 9 |
|
1244389 | 18 - 20 | 30 | 9 | WSP CC..0602.. | 112 - 147 | 14 | 1 Stück |
€779.45
|
|||
| 2 |
|
124432 | 8 - 10 | 25 | 4 | WSP WB.. 0201.. | 21 - 84 | 7 | 1 Stück |
€321.30
|
|||
| 9 |
|
124439 | 18 - 20 | 30 | 9 | WSP TO.. 0802.. | 112 - 147 | 14 | 1 Stück |
€779.45
|
|||
| 1 |
|
124431 | 6 - 8 | 25 | 3 | WSP WB.. 0201.. | 12,5 - 65 | 5 | 1 Stück |
€280.84
|
|||
| 7 |
|
1244387 | 16 - 18 | 30 | 8 | WSP CC..0602.. | 112 - 147 | 14 | 1 Stück |
€730.66
|
|||
| 4 |
|
124434 | 12 - 14 | 25 | 6 | WSP TO.. 0802.. | 51 - 115 | 10 | 1 Stück |
€486.71
|
|||
| 8 |
|
1244388 | 18 - 20 | 30 | 9 | WSP CC..0602.. | 77 - 112 | 14 | 1 Stück |
€730.66
|
|||
| 8 |
|
124438 | 18 - 20 | 30 | 9 | WSP TO.. 0802.. | 77 - 112 | 14 | 1 Stück |
€730.66
|
|||
| 3 |
|
124433 | 10 - 12 | 25 | 5 | WSP TO.. 0802.. | 22 - 92 | 8 | 1 Stück |
€386.75
|
|||
| 5 |
|
1244385 | 14 - 16 | 30 | 7 | WSP CC..0602.. | 68 - 132 | 12 | 1 Stück |
€612.85
|
|||
| 6 |
|
1244386 | 16 - 18 | 30 | 8 | WSP CC..0602.. | 77 - 112 | 14 | 1 Stück |
€709.24
|
|||
| 5 |
|
124435 | 14 - 16 | 30 | 7 | WSP TO.. 0802.. | 68 - 132 | 12 | 1 Stück |
€612.85
|
|||
| 4 |
|
1244384 | 12 - 14 | 25 | 6 | WSP CC..0602.. | 51 - 115 | 10 | 1 Stück |
€486.71
|
