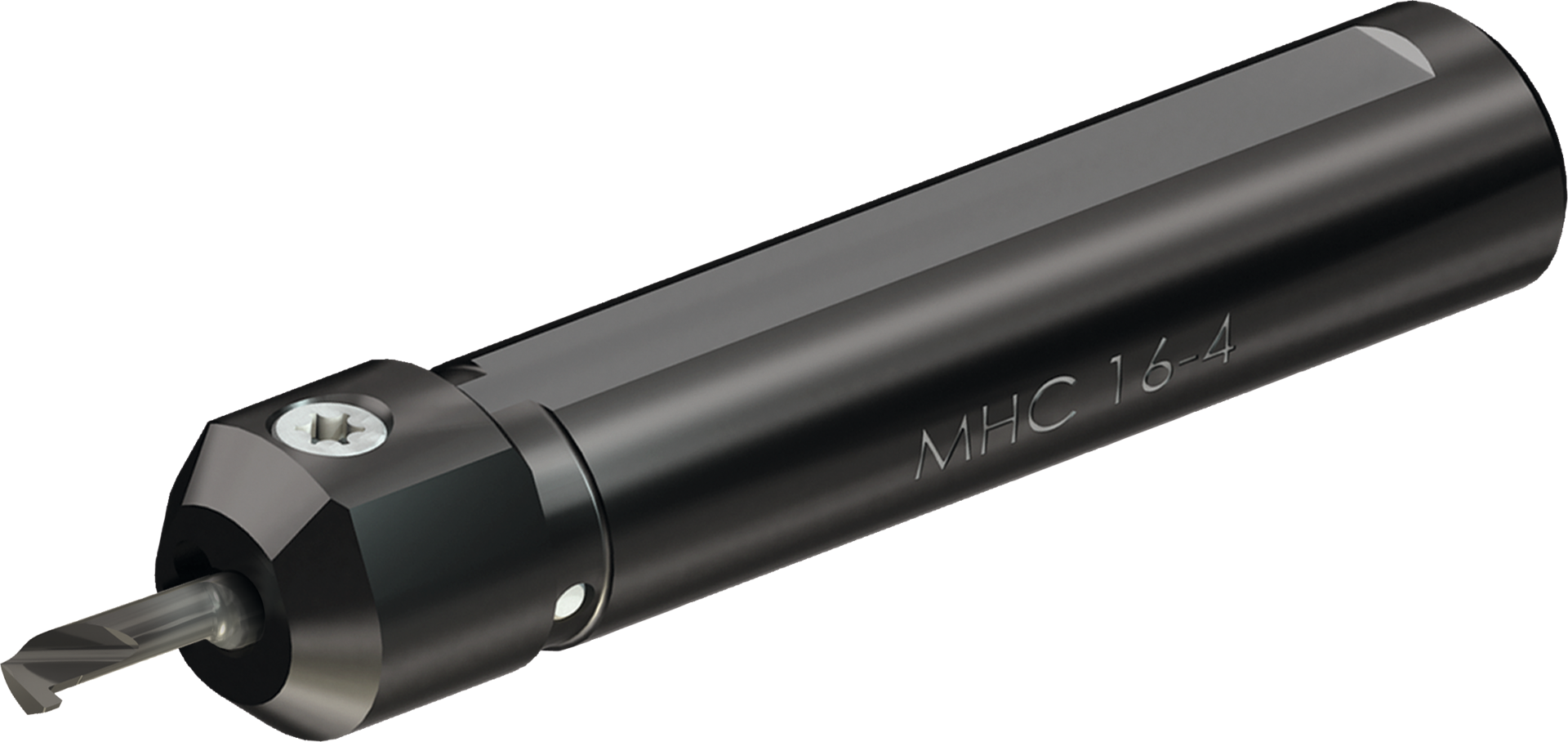

Klemmhalter rund "EYLMICRO" Schaft-D12mm rund L70mm D5mm
Compare
| Einsatz: | für Schneideinsätze EYLMICRO, universell auf Dreh-, Bohr- und Fräsmaschinen |
|---|---|
| IK: | ja |
| Norm: | Werksnorm |
| Tol-: | H7 |
Variants

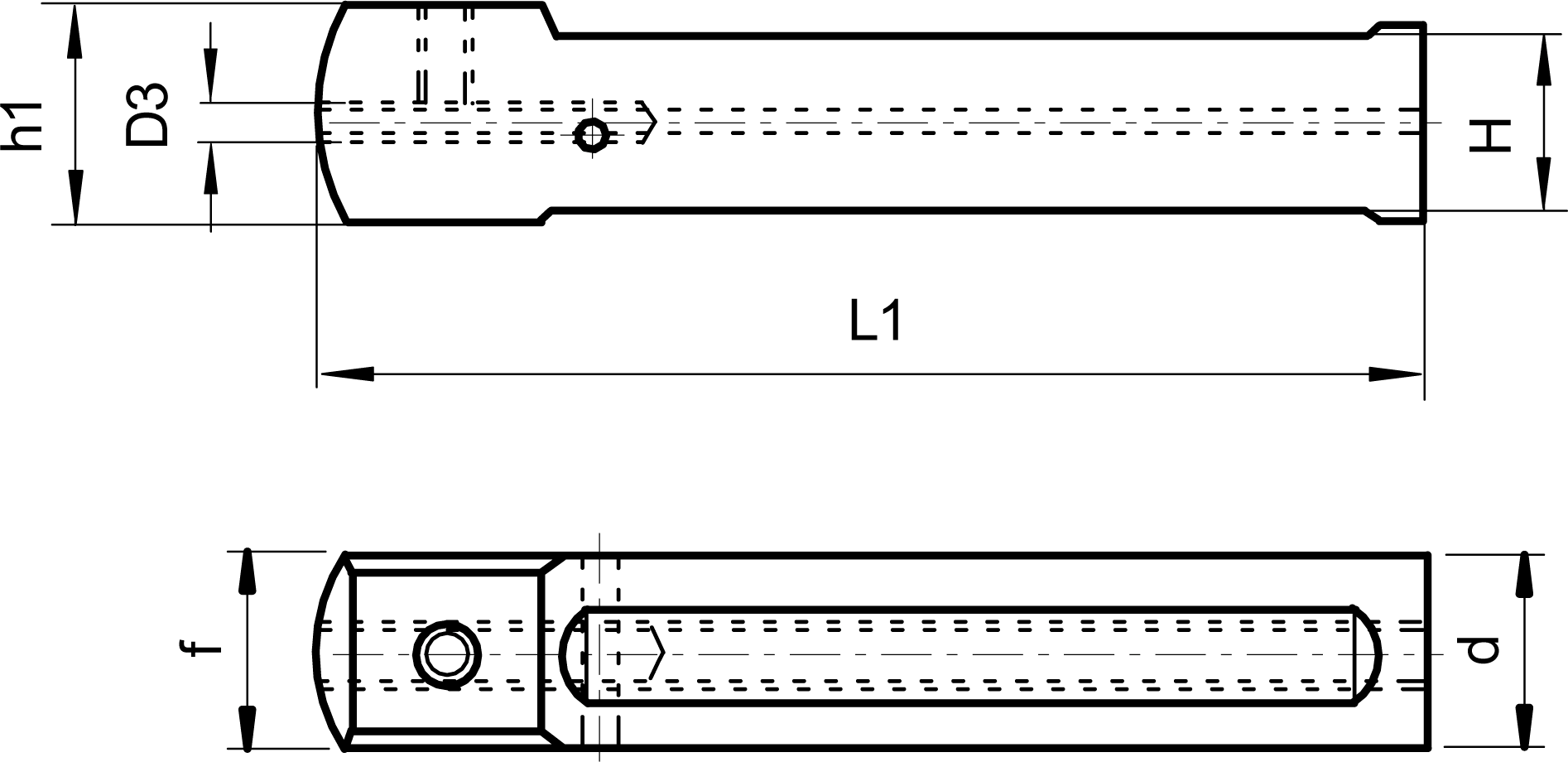

| Position | Code | D3 (mm) | f (mm) | L1 (mm) | h1 (mm) | H (mm) | d (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 |
|
1997170X5 | 5 | 12 | 70 | 16 | 10,8 | 12 | 1 Stück |
€123.88
|
|||
| 2 |
|
1997165X5 | 5 | 10 | 65 | 14 | 8,8 | 10 | 1 Stück |
€123.88
|
|||
| 14 |
|
1997184X7 | 7 | 20 | 84 | 22 | 18,8 | 20 | 1 Stück |
€123.88
|
|||
| 6 |
|
1997175X4 | 4 | 16 | 75 | 18,6 | 14,8 | 16 | 1 Stück |
€123.88
|
|||
| 7 |
|
1997175X5 | 5 | 16 | 75 | 18,6 | 14,8 | 16 | 1 Stück |
€123.88
|
|||
| 13 |
|
1997184X6 | 6 | 20 | 84 | 22 | 18,8 | 20 | 1 Stück |
€123.88
|
|||
| 3 |
|
1997170X4 | 4 | 12 | 70 | 16 | 10,8 | 12 | 1 Stück |
€123.88
|
|||
| 1 |
|
1997165X4 | 4 | 10 | 65 | 14 | 8,8 | 10 | 1 Stück |
€123.88
|
|||
| 5 |
|
1997170X6 | 6 | 12 | 70 | 16 | 10,8 | 12 | 1 Stück |
€123.88
|
|||
| 12 |
|
1997184X5 | 5 | 20 | 84 | 22 | 18,8 | 20 | 1 Stück |
€123.88
|
|||
| 8 |
|
1997175X6 | 6 | 16 | 75 | 18,6 | 14,8 | 16 | 1 Stück |
€123.88
|
|||
| 9 |
|
1997175X7 | 7 | 16 | 75 | 18,6 | 14,8 | 16 | 1 Stück |
€123.88
|
|||
| 11 |
|
1997184X4 | 4 | 20 | 84 | 22 | 18,8 | 20 | 1 Stück |
€123.88
|
