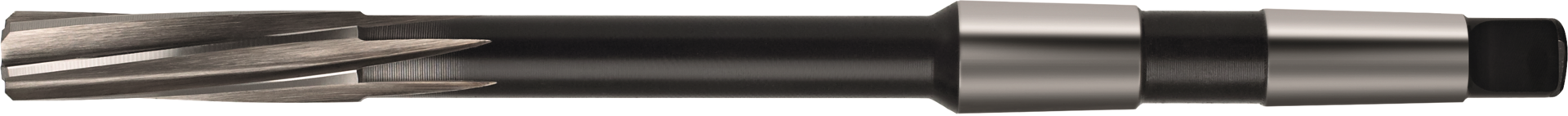

Maschinenreibahle HSSE H7 MK1 DIN208-B D10mm
Compare
| Drallrichtung: | links |
|---|---|
| Einsatz: | für alle Eisen- und Nichteisenmetalle, harte und weiche Kunststoffe, für Durchgangslöcher (bedingt auch für Sacklochbohrungen) |
| Einstellbarkeit: | Nein |
| Form: | B |
| Form des Schaftes: | Morsekegel |
| Material: | HSSE |
| Norm: | DIN 208-B |
| Schneidrichtung: | rechts |
| Tol-: | H7 |
Variants

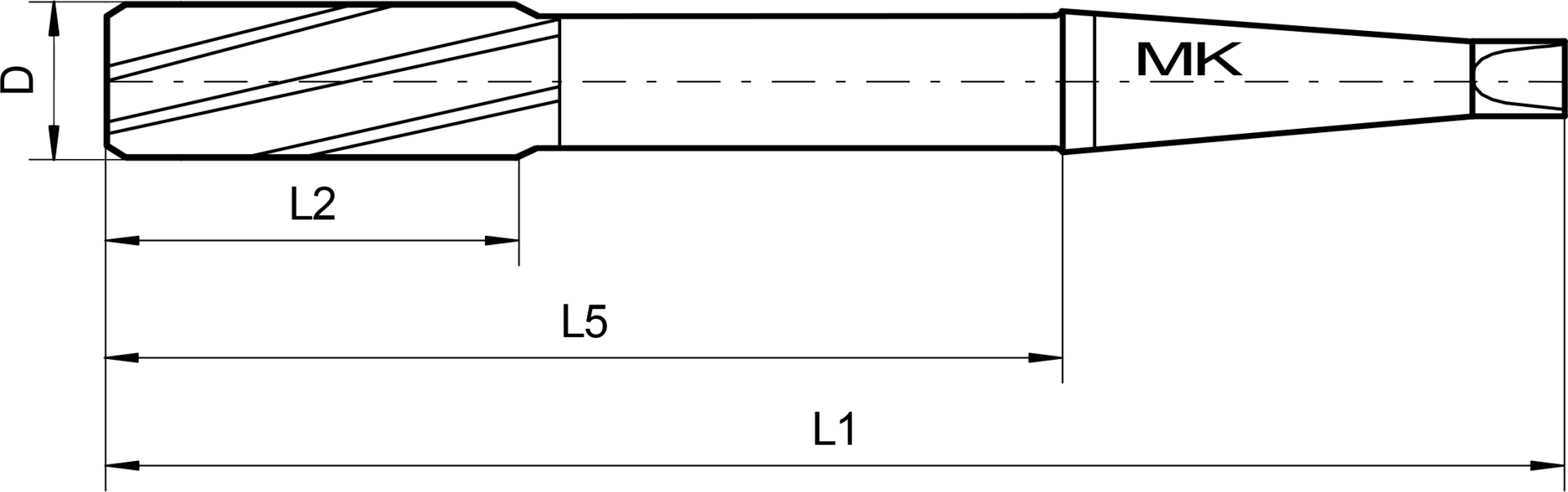

| Position | Code | Z | Schaft | D (mm) | L2 (mm) | L1 (mm) | L5 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 |
|
1331025 | 8 | MK3 | 25 | 68 | 268 | 174 | 1 Stück |
€156.60
|
|||
| 16 |
|
1331020 | 8 | MK2 | 20 | 60 | 228 | 153 | 1 Stück |
€106.62
|
|||
| 4 |
|
133108 | 6 | MK1 | 8 | 33 | 156 | 94 | 1 Stück |
€59.26
|
|||
| 7 |
|
1331011 | 6 | MK1 | 11 | 41 | 175 | 113 | 1 Stück |
€70.45
|
|||
| 8 |
|
1331012 | 6 | MK1 | 12 | 44 | 182 | 120 | 1 Stück |
€55.22
|
|||
| 15 |
|
1331019 | 8 | MK2 | 19 | 58 | 223 | 148 | 1 Stück |
€103.29
|
|||
| 3 |
|
133107 | 6 | MK1 | 7 | 31 | 150 | 88 | 1 Stück |
€79.97
|
|||
| 21 |
|
1331028 | 10 | MK3 | 28 | 71 | 277 | 183 | 1 Stück |
€173.14
|
|||
| 6 |
|
1331010 | 6 | MK1 | 10 | 38 | 168 | 106 | 1 Stück |
€59.50
|
|||
| 23 |
|
1331032 | 10 | MK4 | 32 | 77 | 317 | 199,5 | 1 Stück |
€254.06
|
|||
| 2 |
|
133106 | 6 | MK1 | 6 | 26 | 138 | 76 | 1 Stück |
€69.38
|
|||
| 14 |
|
1331018 | 8 | MK2 | 18 | 56 | 219 | 144 | 1 Stück |
€101.51
|
|||
| 13 |
|
1331017 | 8 | MK2 | 17 | 54 | 214 | 139 | 1 Stück |
€97.58
|
|||
| 1 |
|
133105 | 6 | MK1 | 5 | 23 | 133 | 71 | 1 Stück |
€66.16
|
|||
| 17 |
|
1331022 | 8 | MK2 | 22 | 64 | 237 | 162 | 1 Stück |
€127.81
|
|||
| 5 |
|
133109 | 6 | MK1 | 9 | 36 | 162 | 100 | 1 Stück |
€79.37
|
|||
| 12 |
|
1331016 | 8 | MK2 | 16 | 52 | 210 | 135 | 1 Stück |
€92.94
|
|||
| 20 |
|
1331026 | 8 | MK3 | 26 | 70 | 271 | 179 | 1 Stück |
€171.48
|
|||
| 10 |
|
1331014 | 8 | MK1 | 14 | 47 | 189 | 127 | 1 Stück |
€71.64
|
|||
| 11 |
|
1331015 | 8 | MK2 | 15 | 50 | 204 | 129 | 1 Stück |
€92.34
|
|||
| 9 |
|
1331013 | 6 | MK1 | 13 | 44 | 182 | 120 | 1 Stück |
€74.97
|
|||
| 18 |
|
1331024 | 8 | MK3 | 24 | 68 | 268 | 174 | 1 Stück |
€160.29
|
|||
| 22 |
|
1331030 | 10 | MK3 | 30 | 73 | 281 | 187 | 1 Stück |
€184.93
|
