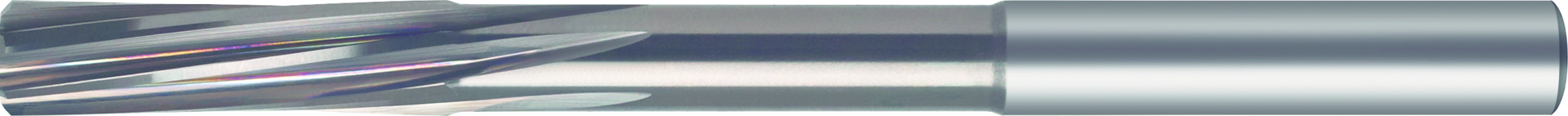

NC-Maschinenreibahle VHM K10 H7 WN D6mm
Compare
| Drallrichtung: | links |
|---|---|
| Einsatz: | für Stähle bis 1200 N/mm², Grauguss >= 240 HB, Mn-Stähle, AlSi-Legierungen, harte bzw. abrasive Kunststoffe, durch gerade Schaftdurchmesser einsetzbar in standardisierten Aufnahmen wie HD-Spannfuttern und ähnlichen Genauigkeitsfuttern |
| Einsatzgebiet: | Gusseisen, Nichteisenmetalle, Stahl |
| Einstellbarkeit: | Nein |
| Form: | B |
| Form des Schaftes: | Zylinder |
| Material: | VHM |
| Norm: | Werksnorm |
| Schneidrichtung: | rechts |
Variants

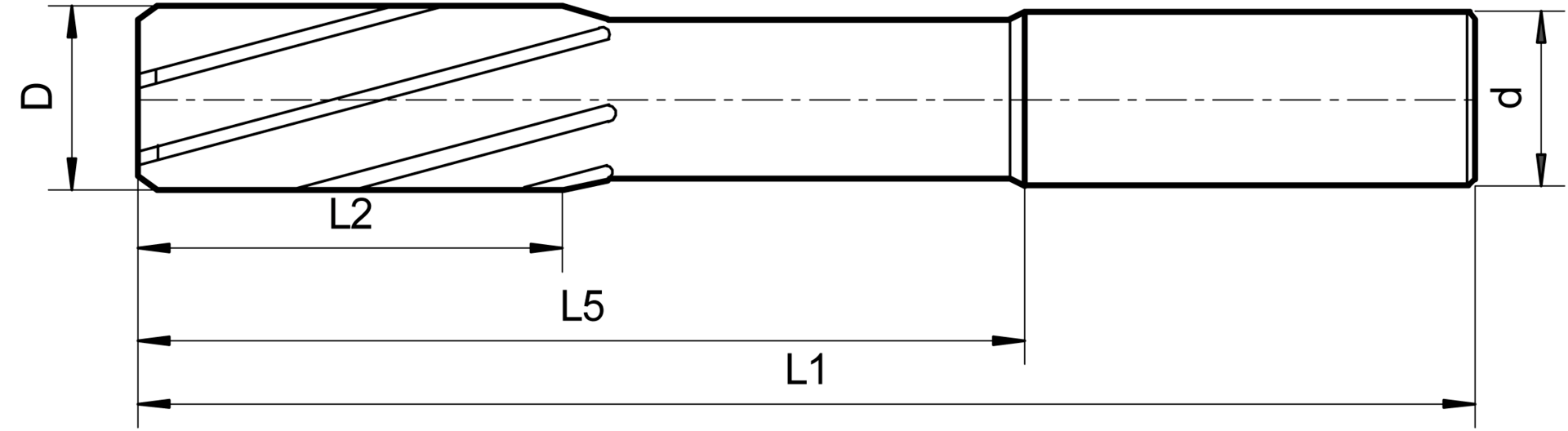

| Position | Code | L1 (mm) | Z | L5 (mm) | D (mm) | Tol- | d (mm) | L2 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 |
|
132054,01 | 77 | 6 | 45 | 4,01 | 0/4μm | 4 | 19 | 1 Stück |
€79.13
|
|||
| 73 |
|
132056 | 93 | 6 | 57 | 6 | H7 | 6 | 26 | 1 Stück |
€78.18
|
|||
| 24 |
|
132052,53 | 57 | 4 | 32 | 2,53 | 0/4μm | 4 | 15 | 1 Stück |
€64.38
|
|||
| 100 |
|
132058,3 | 117 | 6 | 75 | 8,3 | H7 | 10 | 33 | 1 Stück |
€158.03
|
|||
| 77 |
|
132056,1 | 101 | 6 | 63 | 6,1 | H7 | 8 | 28 | 1 Stück |
€92.11
|
|||
| 104 |
|
132059,5 | 117 | 6 | 81 | 9,5 | H7 | 10 | 33 | 1 Stück |
€141.85
|
|||
| 120 |
|
1320512,02 | 151 | 6 | 105 | 12,02 | 0/5μm | 12 | 44 | 1 Stück |
€216.94
|
|||
| 19 |
|
132052,48 | 57 | 4 | 32 | 2,48 | 0/4μm | 4 | 15 | 1 Stück |
€64.38
|
|||
| 123 |
|
1320512,05 | 151 | 6 | 105 | 12,05 | 0/5μm | 12 | 44 | 1 Stück |
€243.83
|
|||
| 110 |
|
1320510,01 | 133 | 6 | 87 | 10,01 | 0/5μm | 10 | 38 | 1 Stück |
€166.72
|
|||
| 22 |
|
132052,51 | 57 | 4 | 32 | 2,51 | 0/4μm | 4 | 15 | 1 Stück |
€64.38
|
|||
| 9 |
|
132051,5 | 40 | 3 | 24 | 1,5 | H7 | 2 | 8 | 1 Stück |
€42.72
|
|||
| 35 |
|
132053,4 | 74 | 6 | 46 | 3,4 | H7 | 4 | 20 | 1 Stück |
€57.36
|
|||
| 7 |
|
132051,48 | 40 | 3 | 22 | 1,48 | 0/4μm | 4 | 8 | 1 Stück |
€127.21
|
|||
| 12 |
|
132051,53 | 40 | 3 | 22 | 1,53 | 0/4μm | 4 | 8 | 1 Stück |
€64.38
|
|||
| 96 |
|
132058,03 | 117 | 6 | 75 | 8,03 | 0/5μm | 8 | 33 | 1 Stück |
€121.02
|
|||
| 10 |
|
132051,51 | 40 | 3 | 22 | 1,51 | 0/4μm | 4 | 8 | 1 Stück |
€64.38
|
|||
| 85 |
|
132057 | 109 | 6 | 69 | 7 | H7 | 8 | 31 | 1 Stück |
€95.20
|
|||
| 94 |
|
132058,01 | 117 | 6 | 75 | 8,01 | 0/5μm | 8 | 33 | 1 Stück |
€119.83
|
|||
| 87 |
|
132057,5 | 109 | 6 | 69 | 7,5 | H7 | 8 | 31 | 1 Stück |
€98.53
|
|||
| 52 |
|
132054,6 | 82 | 6 | 50 | 4,6 | H7 | 6 | 23 | 1 Stück |
€89.37
|
|||
| 54 |
|
132054,9 | 93 | 6 | 59 | 4,9 | H7 | 6 | 26 | 1 Stück |
€94.37
|
|||
| 74 |
|
132056,01 | 93 | 6 | 57 | 6,01 | 0/5μm | 6 | 26 | 1 Stück |
€91.99
|
|||
| 98 |
|
132058,1 | 117 | 6 | 75 | 8,1 | H7 | 8 | 33 | 1 Stück |
€142.68
|
|||
| 115 |
|
1320511,97 | 151 | 6 | 105 | 11,97 | 0/5μm | 12 | 44 | 1 Stück |
€218.01
|
|||
| 49 |
|
132054,3 | 82 | 6 | 50 | 4,3 | H7 | 6 | 23 | 1 Stück |
€86.75
|
|||
| 69 |
|
132055,8 | 93 | 6 | 57 | 5,8 | H7 | 6 | 26 | 1 Stück |
€94.60
|
|||
| 20 |
|
132052,49 | 57 | 4 | 32 | 2,49 | 0/4μm | 4 | 15 | 1 Stück |
€64.38
|
|||
| 101 |
|
132058,5 | 117 | 6 | 75 | 8,5 | H7 | 10 | 33 | 1 Stück |
€142.20
|
|||
| 23 |
|
132052,52 | 57 | 4 | 32 | 2,52 | 0/4μm | 4 | 15 | 1 Stück |
€64.38
|
|||
| 95 |
|
132058,02 | 117 | 6 | 75 | 8,02 | 0/5μm | 8 | 33 | 1 Stück |
€119.71
|
|||
| 82 |
|
132056,6 | 101 | 6 | 63 | 6,6 | H7 | 8 | 28 | 1 Stück |
€106.15
|
|||
| 116 |
|
1320511,98 | 151 | 6 | 105 | 11,98 | 0/5μm | 12 | 44 | 1 Stück |
€223.12
|
|||
| 107 |
|
132059,98 | 133 | 6 | 87 | 9,98 | 0/5μm | 10 | 38 | 1 Stück |
€157.79
|
|||
| 84 |
|
132056,9 | 109 | 6 | 69 | 6,9 | H7 | 8 | 31 | 1 piece |
€121.26
|
|||
| 18 |
|
132052,03 | 49 | 4 | 22 | 2,03 | 0/4μm | 4 | 11 | 1 Stück |
€64.38
|
|||
| 62 |
|
132055,1 | 93 | 6 | 59 | 5,1 | H7 | 6 | 26 | 1 Stück |
€80.56
|
|||
| 111 |
|
1320510,02 | 133 | 6 | 87 | 10,02 | 0/5μm | 10 | 38 | 1 Stück |
€166.36
|
|||
| 30 |
|
132053,02 | 61 | 6 | 36 | 3,02 | 0/4μm | 4 | 15 | 1 Stück |
€66.28
|
|||
| 51 |
|
132054,5 | 82 | 6 | 50 | 4,5 | H7 | 6 | 23 | 1 Stück |
€73.30
|
|||
| 28 |
|
132053 | 61 | 6 | 36 | 3 | H7 | 4 | 15 | 1 Stück |
€53.55
|
|||
| 79 |
|
132056,3 | 101 | 6 | 63 | 6,3 | H7 | 8 | 28 | 1 Stück |
€117.57
|
|||
| 17 |
|
132052,02 | 49 | 4 | 22 | 2,02 | 0/4μm | 4 | 11 | 1 Stück |
€64.38
|
|||
| 75 |
|
132056,02 | 93 | 6 | 57 | 6,02 | 0/5μm | 6 | 26 | 1 Stück |
€91.99
|
|||
| 97 |
|
132058,04 | 117 | 6 | 75 | 8,04 | 0/5μm | 8 | 33 | 1 Stück |
€121.26
|
|||
| 63 |
|
132055,2 | 93 | 6 | 59 | 5,2 | H7 | 6 | 26 | 1 Stück |
€83.42
|
|||
| 4 |
|
132051,01 | 34 | 3 | 22 | 1,01 | 0/4μm | 4 | 6 | 1 Stück |
€63.31
|
|||
| 76 |
|
132056,03 | 93 | 6 | 57 | 6,03 | 0/5μm | 6 | 26 | 1 Stück |
€91.99
|
|||
| 45 |
|
132054,02 | 77 | 6 | 45 | 4,02 | 0/4μm | 4 | 19 | 1 Stück |
€79.13
|
|||
| 13 |
|
132051,98 | 49 | 4 | 22 | 1,98 | 0/4μm | 4 | 11 | 1 Stück |
€64.38
|
|||
| 11 |
|
132051,52 | 40 | 3 | 22 | 1,52 | 0/4μm | 4 | 8 | 1 Stück |
€64.38
|
|||
| 3 |
|
132051 | 34 | 3 | 20 | 1 | H7 | 1 | 6 | 1 Stück |
€49.03
|
|||
| 43 |
|
132054 | 77 | 6 | 45 | 4 | H7 | 4 | 19 | 1 Stück |
€64.38
|
|||
| 8 |
|
132051,49 | 40 | 3 | 22 | 1,49 | 0/4μm | 4 | 8 | 1 Stück |
€64.38
|
|||
| 83 |
|
132056,7 | 101 | 6 | 63 | 6,7 | H7 | 8 | 28 | 1 Stück |
€106.15
|
|||
| 29 |
|
132053,01 | 61 | 6 | 36 | 3,01 | 0/4μm | 4 | 15 | 1 Stück |
€66.28
|
|||
| 113 |
|
1320510,04 | 133 | 6 | 87 | 10,04 | 0/5μm | 10 | 38 | 1 Stück |
€191.11
|
|||
| 121 |
|
1320512,03 | 151 | 6 | 105 | 12,03 | 0/5μm | 12 | 44 | 1 Stück |
€220.15
|
|||
| 38 |
|
132053,7 | 74 | 6 | 46 | 3,7 | H7 | 4 | 20 | 1 Stück |
€60.33
|
|||
| 89 |
|
132057,7 | 117 | 6 | 75 | 7,7 | H7 | 8 | 33 | 1 Stück |
€132.21
|
|||
| 32 |
|
132053,1 | 68 | 6 | 40 | 3,1 | H7 | 4 | 18 | 1 Stück |
€57.36
|
|||
| 80 |
|
132056,4 | 101 | 6 | 63 | 6,4 | H7 | 8 | 28 | 1 Stück |
€106.39
|
|||
| 90 |
|
132057,97 | 117 | 6 | 75 | 7,97 | 0/5μm | 8 | 33 | 1 Stück |
€132.09
|
|||
| 56 |
|
132054,98 | 93 | 6 | 59 | 4,98 | 0/4μm | 6 | 26 | 1 Stück |
€85.92
|
|||
| 27 |
|
132052,99 | 61 | 6 | 36 | 2,99 | 0/4μm | 4 | 15 | 1 Stück |
€66.28
|
|||
| 78 |
|
132056,2 | 101 | 6 | 63 | 6,2 | H7 | 8 | 28 | 1 Stück |
€100.08
|
|||
| 99 |
|
132058,2 | 117 | 6 | 75 | 8,2 | H7 | 10 | 33 | 1 Stück |
€157.08
|
|||
| 15 |
|
132052 | 49 | 4 | 29 | 2 | H7 | 2 | 11 | 1 Stück |
€42.84
|
|||
| 5 |
|
132051,02 | 34 | 3 | 22 | 1,02 | 0/4μm | 4 | 6 | 1 Stück |
€63.31
|
|||
| 114 |
|
1320510,05 | 133 | 6 | 87 | 10,05 | 0/5μm | 10 | 38 | 1 Stück |
€170.76
|
|||
| 47 |
|
132054,1 | 82 | 6 | 50 | 4,1 | H7 | 6 | 21 | 1 Stück |
€78.18
|
|||
| 86 |
|
132057,2 | 109 | 6 | 69 | 7,2 | H7 | 8 | 31 | 1 Stück |
€124.71
|
|||
| 60 |
|
132055,02 | 93 | 6 | 59 | 5,02 | 0/4μm | 6 | 26 | 1 Stück |
€85.92
|
|||
| 57 |
|
132054,99 | 93 | 6 | 59 | 4,99 | 0/4μm | 6 | 26 | 1 Stück |
€92.82
|
|||
| 91 |
|
132057,98 | 117 | 6 | 75 | 7,98 | 0/5μm | 8 | 33 | 1 Stück |
€118.52
|
|||
| 26 |
|
132052,98 | 61 | 6 | 36 | 2,98 | 0/4μm | 4 | 15 | 1 Stück |
€66.28
|
|||
| 55 |
|
132054,97 | 93 | 6 | 59 | 4,97 | 0/4μm | 6 | 26 | 1 Stück |
€96.15
|
|||
| 67 |
|
132055,6 | 93 | 6 | 57 | 5,6 | H7 | 6 | 26 | 1 Stück |
€94.13
|
|||
| 6 |
|
132051,03 | 34 | 3 | 22 | 1,03 | 0/4μm | 4 | 6 | 1 Stück |
€63.31
|
|||
| 58 |
|
132055 | 93 | 6 | 59 | 5 | H7 | 6 | 26 | 1 Stück |
€70.33
|
|||
| 2 |
|
132050,99 | 34 | 3 | 22 | 0,99 | 0/4μm | 4 | 6 | 1 piece |
€63.31
|
|||
| 106 |
|
132059,97 | 133 | 6 | 87 | 9,97 | 0/5μm | 10 | 38 | 1 Stück |
€175.29
|
|||
| 25 |
|
132052,97 | 61 | 6 | 36 | 2,97 | 0/4μm | 4 | 15 | 1 Stück |
€66.28
|
|||
| 81 |
|
132056,5 | 101 | 6 | 63 | 6,5 | H7 | 8 | 28 | 1 Stück |
€91.27
|
|||
| 93 |
|
132058 | 117 | 6 | 75 | 8 | H7 | 8 | 33 | 1 Stück |
€98.89
|
|||
| 31 |
|
132053,03 | 61 | 6 | 36 | 3,03 | 0/4μm | 4 | 15 | 1 Stück |
€66.28
|
|||
| 112 |
|
1320510,03 | 133 | 6 | 87 | 10,03 | 0/5μm | 10 | 38 | 1 Stück |
€170.76
|
|||
| 118 |
|
1320512 | 151 | 6 | 105 | 12 | H7 | 12 | 44 | 1 Stück |
€154.10
|
|||
| 33 |
|
132053,2 | 68 | 6 | 40 | 3,2 | H7 | 4 | 18 | 1 Stück |
€57.36
|
|||
| 40 |
|
132053,97 | 77 | 6 | 45 | 3,97 | 0/4μm | 4 | 19 | 1 Stück |
€79.13
|
|||
| 72 |
|
132055,99 | 93 | 6 | 57 | 5,99 | 0/5μm | 6 | 26 | 1 Stück |
€91.99
|
|||
| 61 |
|
132055,03 | 93 | 6 | 59 | 5,03 | 0/4μm | 6 | 26 | 1 Stück |
€85.92
|
|||
| 70 |
|
132055,97 | 93 | 6 | 57 | 5,97 | 0/5μm | 6 | 26 | 1 Stück |
€91.99
|
|||
| 109 |
|
1320510 | 133 | 6 | 87 | 10 | H7 | 10 | 38 | 1 Stück |
€117.69
|
|||
| 46 |
|
132054,03 | 77 | 6 | 45 | 4,03 | 0/4μm | 4 | 19 | 1 Stück |
€79.13
|
|||
| 71 |
|
132055,98 | 93 | 6 | 57 | 5,98 | 0/5μm | 6 | 26 | 1 Stück |
€91.99
|
|||
| 16 |
|
132052,01 | 49 | 4 | 22 | 2,01 | 0/4μm | 4 | 11 | 1 Stück |
€64.38
|
|||
| 37 |
|
132053,6 | 74 | 6 | 46 | 3,6 | H7 | 4 | 20 | 1 Stück |
€60.33
|
|||
| 102 |
|
132058,7 | 117 | 6 | 81 | 8,7 | H7 | 10 | 33 | 1 Stück |
€145.89
|
|||
| 53 |
|
132054,8 | 93 | 6 | 59 | 4,8 | H7 | 6 | 26 | 1 Stück |
€64.38
|
|||
| 42 |
|
132053,99 | 77 | 6 | 45 | 3,99 | 0/4μm | 4 | 19 | 1 Stück |
€79.49
|
|||
| 41 |
|
132053,98 | 77 | 6 | 45 | 3,98 | 0/4μm | 4 | 19 | 1 Stück |
€79.13
|
|||
| 34 |
|
132053,3 | 68 | 6 | 40 | 3,3 | H7 | 4 | 18 | 1 Stück |
€57.36
|
|||
| 50 |
|
132054,4 | 82 | 6 | 50 | 4,4 | H7 | 6 | 23 | 1 Stück |
€88.30
|
|||
| 122 |
|
1320512,04 | 151 | 6 | 105 | 12,04 | 0/5μm | 12 | 44 | 1 Stück |
€246.09
|
|||
| 59 |
|
132055,01 | 93 | 6 | 59 | 5,01 | 0/4μm | 6 | 26 | 1 Stück |
€85.92
|
|||
| 21 |
|
132052,5 | 57 | 4 | 34 | 2,5 | H7 | 3 | 14 | 1 Stück |
€49.03
|
|||
| 92 |
|
132057,99 | 117 | 6 | 75 | 7,99 | 0/5μm | 8 | 33 | 1 Stück |
€135.06
|
|||
| 36 |
|
132053,5 | 74 | 6 | 46 | 3,5 | H7 | 4 | 20 | 1 Stück |
€56.41
|
|||
| 48 |
|
132054,2 | 82 | 6 | 50 | 4,2 | H7 | 6 | 21 | 1 Stück |
€74.37
|
|||
| 117 |
|
1320511,99 | 151 | 6 | 105 | 11,99 | 0/5μm | 12 | 44 | 1 Stück |
€247.88
|
|||
| 1 |
|
132050,98 | 34 | 3 | 22 | 0,98 | 0/+0,004 | 4 | 6 | 1 Stück |
€63.31
|
|||
| 39 |
|
132053,8 | 77 | 6 | 45 | 3,8 | H7 | 4 | 21 | 1 Stück |
€60.33
|
|||
| 108 |
|
132059,99 | 133 | 6 | 87 | 9,99 | 0/5μm | 10 | 38 | 1 Stück |
€171.24
|
|||
| 66 |
|
132055,5 | 93 | 6 | 57 | 5,5 | H7 | 6 | 26 | 1 Stück |
€81.28
|
|||
| 64 |
|
132055,3 | 93 | 6 | 59 | 5,3 | H7 | 6 | 26 | 1 Stück |
€82.59
|
|||
| 103 |
|
132059 | 117 | 6 | 81 | 9 | H7 | 10 | 33 | 1 Stück |
€126.38
|
|||
| 119 |
|
1320512,01 | 151 | 6 | 105 | 12,01 | 0/5μm | 12 | 44 | 1 Stück |
€215.75
|
