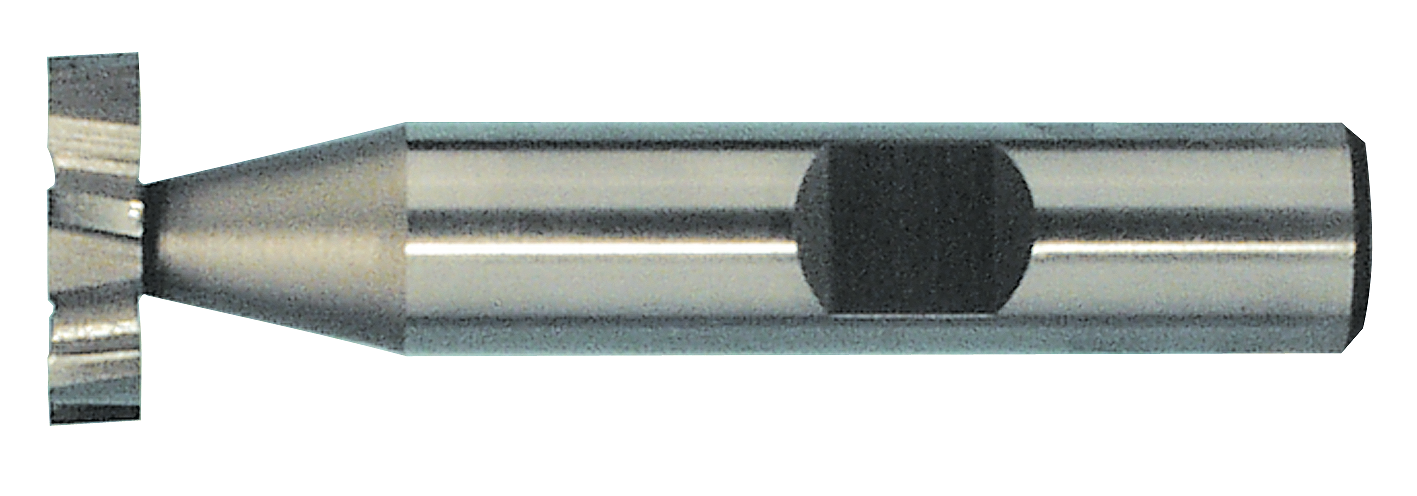

Schlitzfräser kreuzverzahnt HSSE Z8 DIN850/1835-B D19,5x4mm
Compare
Hinweis:
Die Abmessungen 13,5 x 2 / 19,5 x 3 / 22,5 x 4 / 25,5 x 5 / 32,5 x 6 mm entsprechen nicht der DIN 850!
| Drallrichtung: | rechts |
|---|---|
| Einsatz: | für normale bis feste Werkstoffe bis ca. 900 N/mm², geeignet zum Fräsen von Scheibenfedern, Nuten für Woodruff-Keile DIN 6888 oder von kleinen Schlitzen in Bau-, Einsatz- und Vergütungsstählen |
| Einsatzgebiet: | Edelstahl, Gusseisen, Nichteisenmetalle, Stahl |
| Material: | HSSE |
| Norm: | DIN 850/DIN 1835-B |
| Schneidrichtung: | rechts |
Variants

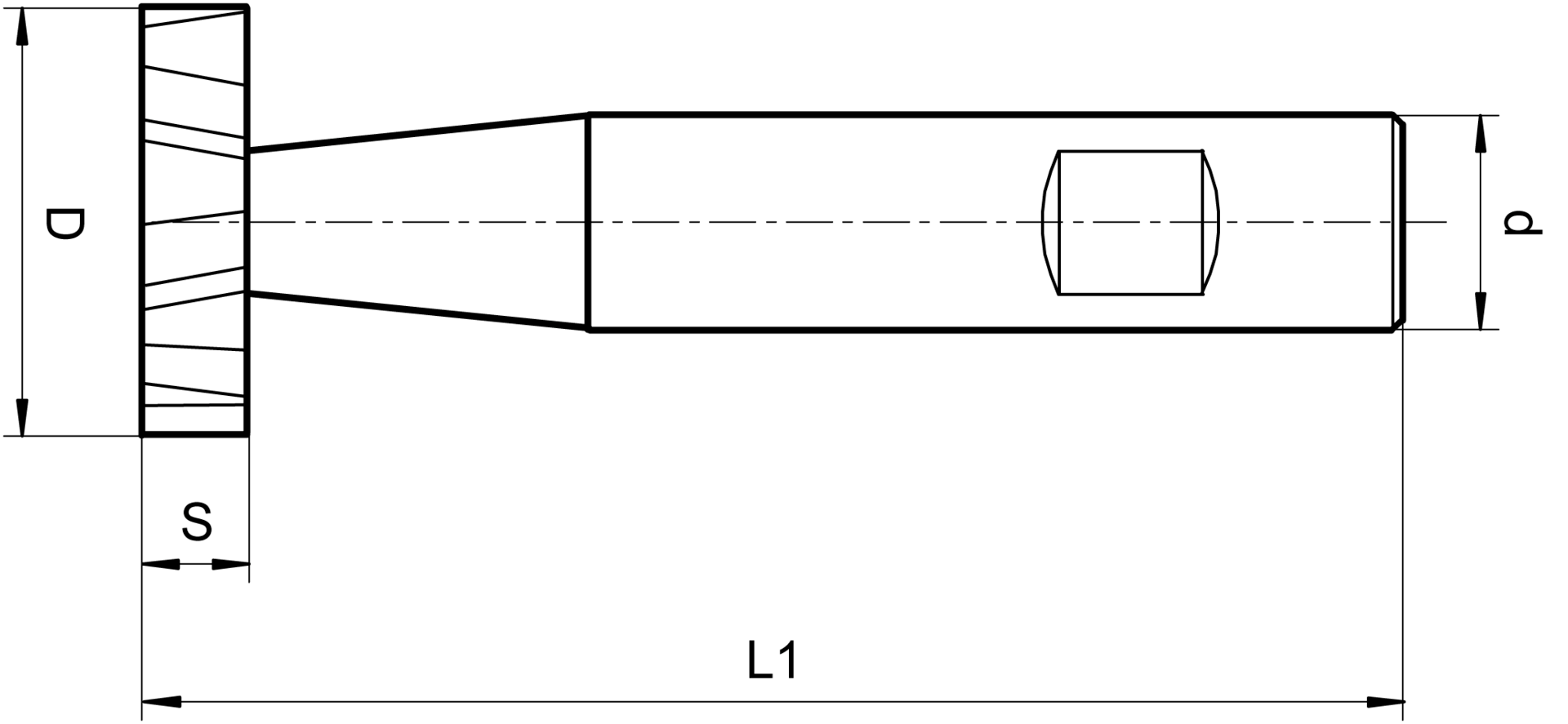

| Position | Code | d (mm) | L (mm) | D (mm) | Z | S (mm) | für Federn (N) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 |
|
1681016,5X3 | 10 | 56 | 16,5 | 6 | 3 | 3,0 x 6,5 | 1 Stück |
€47.48
|
|||
| 7 |
|
1681016,5X4 | 10 | 56 | 16,5 | 6 | 4 | 4,0 x 6,5 | 1 Stück |
€47.48
|
|||
| 12 |
|
1681022,5X4 | 10 | 63 | 22,5 | 8 | 4 | - | 1 Stück |
€67.59
|
|||
| 20 |
|
1681028,5X6 | 10 | 63 | 28,5 | 10 | 6 | 6,0 x 11,0 | 1 Stück |
€77.23
|
|||
| 15 |
|
1681025,5X5 | 10 | 63 | 25,5 | 10 | 5 | - | 1 Stück |
€77.23
|
|||
| 16 |
|
1681025,5X6 | 10 | 63 | 25,5 | 10 | 6 | 6,0 x 10,0 | 1 Stück |
€77.23
|
|||
| 5 |
|
1681016,5X2,5 | 10 | 56 | 16,5 | 8 | 2,5 | 2,5 x 6,5 | 1 Stück |
€44.39
|
|||
| 19 |
|
1681028,5X5 | 10 | 63 | 28,5 | 10 | 5 | 5,0 x 11,0 | 1 Stück |
€79.25
|
|||
| 18 |
|
1681025,5X8 | 10 | 63 | 25,5 | 10 | 8 | 8,0 x 10,0 | 1 Stück |
€79.25
|
|||
| 10 |
|
1681019,5X4 | 10 | 63 | 19,5 | 8 | 4 | 4,0 x 7,5 | 1 Stück |
€56.05
|
|||
| 14 |
|
1681022,5X6 | 10 | 63 | 22,5 | 8 | 6 | 6,0 x 9,0 | 1 Stück |
€67.59
|
|||
| 4 |
|
1681013,5X4 | 10 | 56 | 13,5 | 6 | 4 | 4,0 x 5,0 | 1 Stück |
€43.20
|
|||
| 22 |
|
1681028,5X8 | 10 | 63 | 28,5 | 10 | 8 | 8,0 x 11,0 | 1 Stück |
€77.23
|
|||
| 24 |
|
1681032,5X6 | 12 | 71 | 32,5 | 10 | 6 | - | 1 Stück |
€83.30
|
|||
| 23 |
|
1681032,5X5 | 12 | 71 | 32,5 | 12 | 5 | 5,0 x 13,0 | 1 Stück |
€79.25
|
|||
| 2 |
|
1681013,5X2,5 | 10 | 56 | 13,5 | 8 | 2,5 | 2,5 x 5,0 | 1 Stück |
€44.39
|
|||
| 3 |
|
1681013,5X3 | 10 | 56 | 13,5 | 6 | 3 | 3,0 x 5,0 | 1 Stück |
€43.20
|
|||
| 1 |
|
1681013,5X2 | 10 | 56 | 13,5 | 6 | 2 | 2,0 x 5,0 | 1 Stück |
€43.20
|
|||
| 11 |
|
1681019,5X5 | 10 | 63 | 19,5 | 8 | 5 | 5,0 x 7,5 | 1 Stück |
€56.05
|
|||
| 13 |
|
1681022,5X5 | 10 | 63 | 22,5 | 8 | 5 | 5,0 x 9,0 | 1 Stück |
€67.59
|
|||
| 8 |
|
1681016,5X5 | 10 | 56 | 16,5 | 6 | 5 | 5,0 x 6,5 | 1 Stück |
€47.48
|
|||
| 25 |
|
1681032,5X8 | 12 | 71 | 32,5 | 10 | 8 | 8,0 x 13,0 | 1 Stück |
€83.30
|
|||
| 9 |
|
1681019,5X3 | 10 | 63 | 19,5 | 8 | 3 | - | 1 Stück |
€56.05
|
