Schraube T-Nuten für M12 L50mm Nut14mm DIN787 Festigkeitsklasse 10,9
Compare
Hinweis:
Weitere Größen auf Anfrage!
| Norm: | DIN 787 |
|---|
Variants

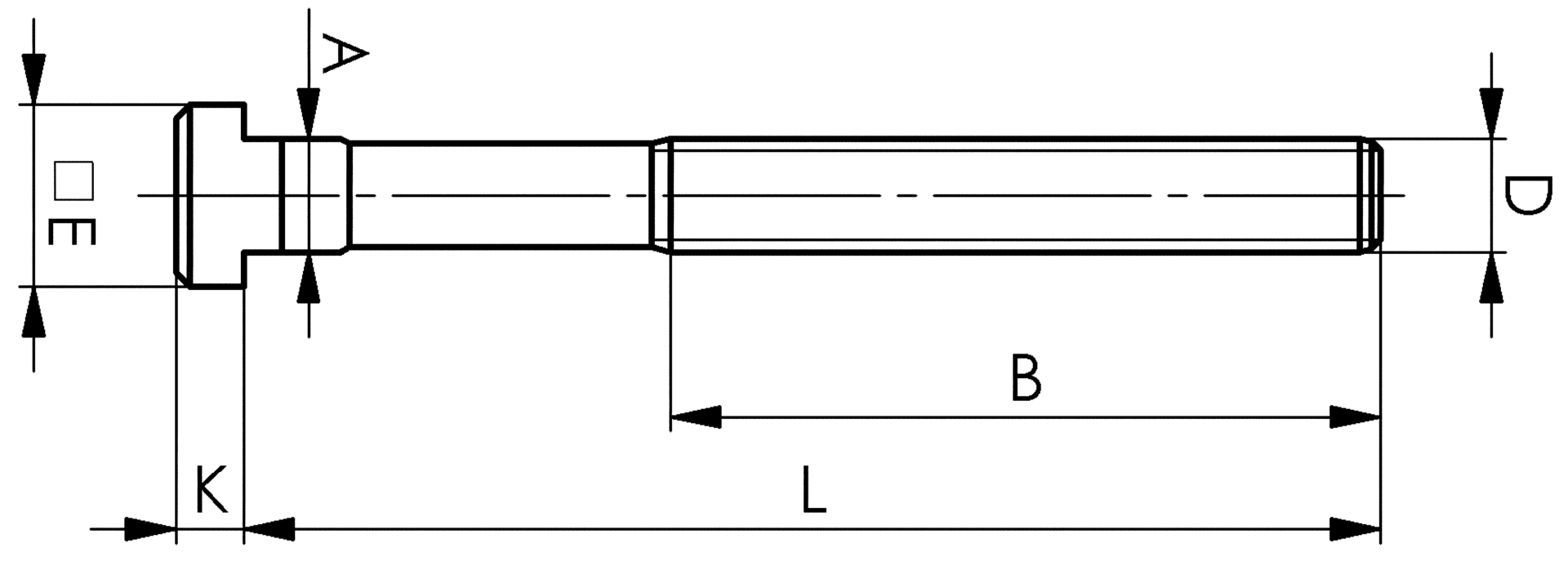

| Position | Code | K (mm) | L (mm) | B (mm) | Nut (mm) | D | A (mm) | Festigkeitsklasse | E (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17 |
|
26419M20X125 | 12 | 125 | 85 | 20 | M20 | 19,7 | 8,8 | 32 | 1 Stück |
€17.85
|
|||
| 2 |
|
26419M10X63 | 6 | 63 | 45 | 10 | M10 | 9,7 | 10,9 | 15 | 1 Stück |
€8.81
|
|||
| 10 |
|
26419M16X63 | 9 | 63 | 45 | 16 | M16 | 15,7 | 8,8 | 25 | 1 Stück |
€11.19
|
|||
| 15 |
|
26419M16X160/1 | 10 | 160 | 100 | 18 | M16 | 17,7 | 8,8 | 28 | 1 Stück |
€15.23
|
|||
| 5 |
|
26419M12X80 | 7 | 80 | 55 | 12 | M12 | 11,7 | 10,9 | 18 | 1 Stück |
€9.28
|
|||
| 12 |
|
26419M16X160 | 9 | 160 | 100 | 16 | M16 | 15,7 | 8,8 | 25 | 1 Stück |
€14.64
|
|||
| 3 |
|
26419M10X100 | 6 | 100 | 60 | 10 | M10 | 9,7 | 10,9 | 15 | 1 Stück |
€9.28
|
|||
| 7 |
|
26419M12X50/1 | 8 | 50 | 35 | 14 | M12 | 13,7 | 10,9 | 22 | 1 Stück |
€8.81
|
|||
| 6 |
|
26419M12X125 | 7 | 125 | 75 | 12 | M12 | 11,7 | 10,9 | 18 | 1 Stück |
€10.59
|
|||
| 19 |
|
26419M24X160 | 18 | 160 | 110 | 28 | M24 | 27,7 | 8,8 | 44 | 1 Stück |
€30.46
|
|||
| 9 |
|
26419M12X125/1 | 8 | 125 | 75 | 14 | M12 | 13,7 | 10,9 | 22 | 1 Stück |
€11.07
|
|||
| 14 |
|
26419M16X100/1 | 10 | 100 | 65 | 18 | M16 | 17,7 | 8,8 | 28 | 1 Stück |
€12.85
|
|||
| 18 |
|
26419M20X125/1 | 14 | 125 | 85 | 22 | M20 | 21,7 | 8,8 | 35 | 1 Stück |
€19.16
|
|||
| 16 |
|
26419M20X80 | 12 | 80 | 55 | 20 | M20 | 19,7 | 8,8 | 32 | 1 Stück |
€16.42
|
|||
| 13 |
|
26419M16X63/1 | 10 | 63 | 45 | 18 | M16 | 17,7 | 8,8 | 28 | 1 Stück |
€12.02
|
|||
| 1 |
|
26419M10X40 | 6 | 40 | 30 | 10 | M10 | 9,7 | 10,9 | 15 | 1 Stück |
€8.81
|
|||
| 4 |
|
26419M12X50 | 7 | 50 | 33 | 12 | M12 | 11,7 | 10,9 | 18 | 1 Stück |
€8.81
|
|||
| 11 |
|
26419M16X100 | 9 | 100 | 65 | 16 | M16 | 15,7 | 8,8 | 25 | 1 Stück |
€12.61
|
|||
| 8 |
|
26419M12X80/1 | 8 | 80 | 55 | 14 | M12 | 13,7 | 10,9 | 22 | 1 Stück |
€9.40
|
