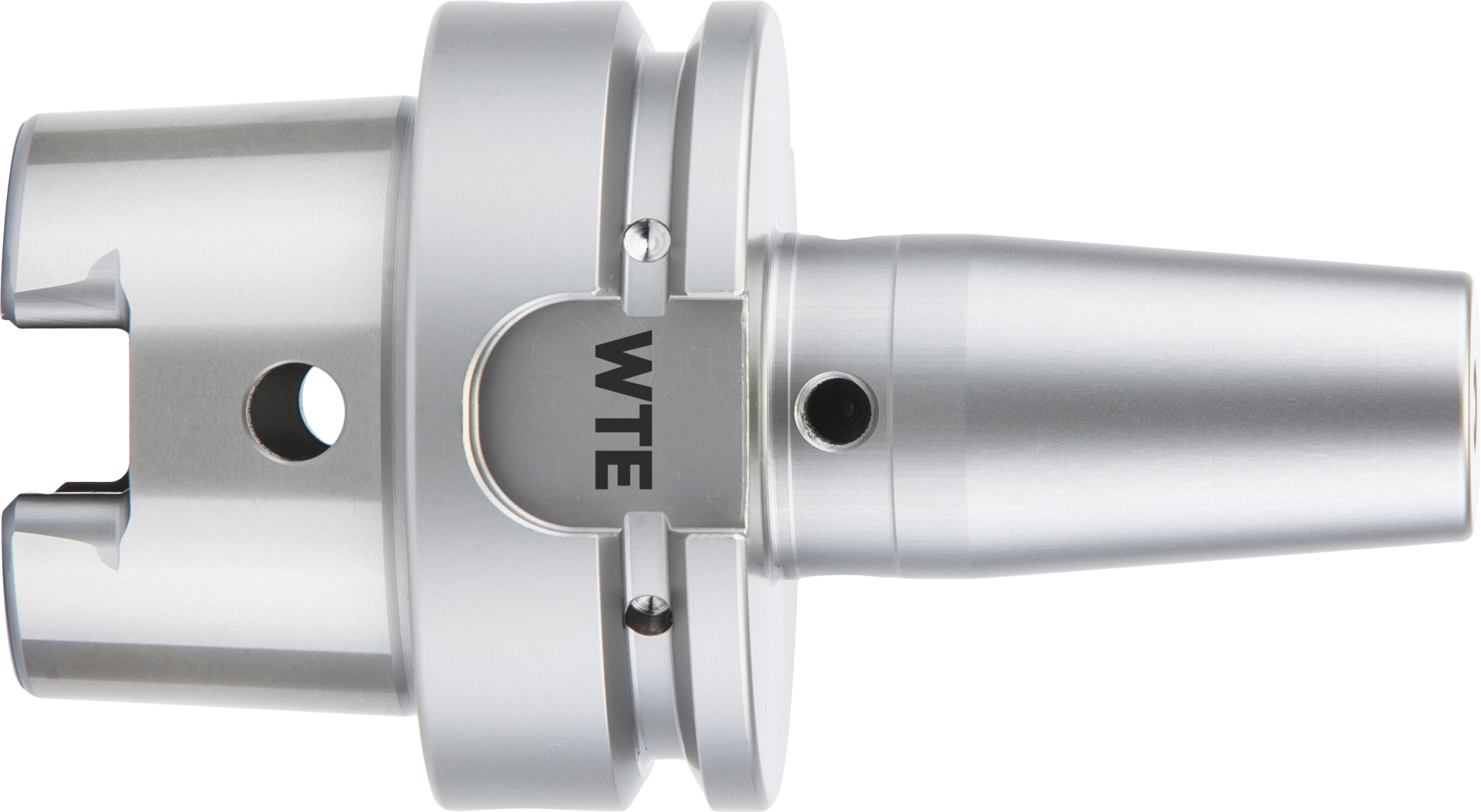

Schrumpffutter HSK100-A DIN69893-A D10mm L90mm
Compare
| Aufnahme: | Zylinder |
|---|---|
| Einsatz: | HSC-Fräsen, Fräsen im Werkzeug und Formenbau, Schwerzerspannung, Bohren und Reiben |
| Form: | A |
| IK: | ja |
| Norm: | DIN 69893 |
| Wuchtgüte: | G2,5 25000 |
Variants
| Position | Code | l3 (mm) | d1 (mm) | l2 (mm) | l1 (mm) | Gewinde | d2 (mm) | Aufnahme | d3 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17 |
|
2372410X90 | 10 | 10 | 41 | 90 | M8 x 1 | 24 | HSK 100-A | 32 | 1 Stück |
€375.09
|
|||
| 6 |
|
237236X120 | 10 | 6 | 36 | 120 | M5 | 21 | HSK 63-A | 27 | 1 Stück |
€295.12
|
|||
| 42 |
|
2372418X120 | 10 | 18 | 50 | 120 | M12 x 1 | 33 | HSK 100-A | 42 | 1 Stück |
€382.82
|
|||
| 47 |
|
2372420X105 | 10 | 20 | 52 | 105 | M16 x 1 | 33 | HSK 100-A | 42 | 1 Stück |
€294.41
|
|||
| 2 |
|
237234X80 | 12 | 4 | 28 | 80 | M6 | 15 | HSK 63-A | 22 | 1 Stück |
€255.14
|
|||
| 6 |
|
237246X120 | 10 | 6 | 36 | 120 | M5 | 21 | HSK 100-A | 27 | 1 Stück |
€382.82
|
|||
| 12 |
|
237238X120 | 10 | 8 | 36 | 120 | M6 | 21 | HSK 63-A | 27 | 1 Stück |
€295.12
|
|||
| 30 |
|
2372314X120 | 10 | 14 | 47 | 120 | M10 x 1 | 27 | HSK 63-A | 34 | 1 Stück |
€295.12
|
|||
| 28 |
|
2372314X90 | 10 | 14 | 47 | 90 | M10 x 1 | 27 | HSK 63-A | 34 | 1 Stück |
€214.44
|
|||
| 11 |
|
237248X85 | 10 | 8 | 36 | 85 | M6 | 21 | HSK 100-A | 27 | 1 Stück |
€294.41
|
|||
| 24 |
|
2372412X120 | 10 | 12 | 47 | 120 | M10 x 1 | 24 | HSK 100-A | 32 | 1 Stück |
€382.82
|
|||
| 46 |
|
2372320X100 | 10 | 20 | 52 | 100 | M16 x 1 | 33 | HSK 63-A | 42 | 1 Stück |
€214.44
|
|||
| 32 |
|
2372414X160 | 10 | 14 | 47 | 160 | M10 x 1 | 27 | HSK 100-A | 34 | 1 Stück |
€419.71
|
|||
| 55 |
|
2372332X160 | 10 | 32 | 62 | 160 | M16 x 1 | 44 | HSK 63-A | 53 | 1 Stück |
€324.87
|
|||
| 4 |
|
237236X80 | 10 | 6 | 36 | 80 | M5 | 21 | HSK 63-A | 27 | 1 Stück |
€214.44
|
|||
| 12 |
|
237248X120 | 10 | 8 | 36 | 120 | M6 | 21 | HSK 100-A | 27 | 1 Stück |
€382.82
|
|||
| 52 |
|
2372325X160 | 10 | 25 | 62 | 160 | M16 x 1 | 44 | HSK 63-A | 53 | 1 Stück |
€324.87
|
|||
| 49 |
|
2372320X160 | 10 | 20 | 52 | 160 | M16 x 1 | 33 | HSK 63-A | 42 | 1 Stück |
€324.87
|
|||
| 38 |
|
2372316X160 | 10 | 16 | 50 | 160 | M12 x 1 | 27 | HSK 63-A | 34 | 1 Stück |
€324.87
|
|||
| 51 |
|
2372425X115 | 10 | 25 | 58 | 115 | M16 x 1 | 44 | HSK 100-A | 53 | 1 Stück |
€294.41
|
|||
| 26 |
|
2372412X160 | 10 | 12 | 47 | 160 | M10 x 1 | 24 | HSK 100-A | 32 | 1 Stück |
€408.17
|
|||
| 10 |
|
237238X80 | 10 | 8 | 36 | 80 | M6 | 21 | HSK 63-A | 27 | 1 Stück |
€214.44
|
|||
| 18 |
|
2372310X120 | 10 | 10 | 41 | 120 | M8 x 1 | 24 | HSK 63-A | 32 | 1 Stück |
€295.12
|
|||
| 44 |
|
2372318X160 | 10 | 18 | 50 | 160 | M12 x 1 | 33 | HSK 63-A | 42 | 1 Stück |
€324.87
|
|||
| 54 |
|
2372432X120 | 10 | 32 | 62 | 120 | M16 x 1 | 44 | HSK 100-A | 53 | 1 Stück |
€264.77
|
|||
| 5 |
|
237246X85 | 10 | 6 | 36 | 85 | M5 | 21 | HSK 100-A | 27 | 1 Stück |
€294.41
|
|||
| 40 |
|
2372318X95 | 10 | 18 | 50 | 95 | M12 x 1 | 33 | HSK 63-A | 42 | 1 Stück |
€214.44
|
|||
| 23 |
|
2372412X95 | 10 | 12 | 47 | 95 | M10 x 1 | 24 | HSK 100-A | 32 | 1 Stück |
€294.41
|
|||
| 51 |
|
2372325X115 | 10 | 25 | 58 | 115 | M16 x 1 | 44 | HSK 63-A | 53 | 1 Stück |
€214.44
|
|||
| 35 |
|
2372416X100 | 10 | 16 | 50 | 100 | M12 x 1 | 27 | HSK 100-A | 34 | 1 Stück |
€294.41
|
|||
| 32 |
|
2372314X160 | 10 | 14 | 47 | 160 | M10 x 1 | 27 | HSK 63-A | 34 | 1 Stück |
€324.87
|
|||
| 38 |
|
2372416X160 | 10 | 16 | 50 | 160 | M12 x 1 | 27 | HSK 100-A | 34 | 1 Stück |
€419.71
|
|||
| 3 |
|
237235X80 | 10 | 5 | 30 | 80 | M6 | 15 | HSK 63-A | 22 | 1 Stück |
€255.14
|
|||
| 55 |
|
2372432X160 | 10 | 32 | 62 | 160 | M16 x 1 | 44 | HSK 100-A | 53 | 1 Stück |
€419.71
|
|||
| 18 |
|
2372410X120 | 10 | 10 | 41 | 120 | M8 x 1 | 24 | HSK 100-A | 32 | 1 Stück |
€382.82
|
|||
| 29 |
|
2372414X95 | 10 | 14 | 47 | 95 | M10 x 1 | 27 | HSK 100-A | 34 | 1 Stück |
€294.41
|
|||
| 36 |
|
2372416X120 | 10 | 16 | 50 | 120 | M12 x 1 | 27 | HSK 100-A | 34 | 1 Stück |
€382.82
|
|||
| 36 |
|
2372316X120 | 10 | 16 | 50 | 120 | M12 x 1 | 27 | HSK 63-A | 34 | 1 Stück |
€295.12
|
|||
| 44 |
|
2372418X160 | 10 | 18 | 50 | 160 | M12 x 1 | 33 | HSK 100-A | 42 | 1 Stück |
€419.71
|
|||
| 20 |
|
2372310X160 | 10 | 10 | 41 | 160 | M8 x 1 | 24 | HSK 63-A | 32 | 1 Stück |
€324.87
|
|||
| 14 |
|
237248X160 | 10 | 8 | 36 | 160 | M6 | 21 | HSK 100-A | 27 | 1 Stück |
€419.71
|
|||
| 14 |
|
237238X160 | 10 | 8 | 36 | 160 | M6 | 21 | HSK 63-A | 27 | 1 Stück |
€324.87
|
|||
| 24 |
|
2372312X120 | 10 | 12 | 47 | 120 | M10 x 1 | 24 | HSK 63-A | 32 | 1 Stück |
€295.12
|
|||
| 42 |
|
2372318X120 | 10 | 18 | 50 | 120 | M12 x 1 | 33 | HSK 63-A | 42 | 1 Stück |
€295.12
|
|||
| 41 |
|
2372418X100 | 10 | 18 | 50 | 100 | M12 x 1 | 33 | HSK 100-A | 42 | 1 Stück |
€294.41
|
|||
| 22 |
|
2372312X90 | 10 | 12 | 47 | 90 | M10 x 1 | 24 | HSK 63-A | 32 | 1 Stück |
€214.44
|
|||
| 54 |
|
2372332X120 | 10 | 32 | 62 | 120 | M16 x 1 | 44 | HSK 63-A | 53 | 1 Stück |
€214.44
|
|||
| 30 |
|
2372414X120 | 10 | 14 | 47 | 120 | M10 x 1 | 27 | HSK 100-A | 34 | 1 Stück |
€382.82
|
|||
| 8 |
|
237246X160 | 10 | 6 | 36 | 160 | M5 | 21 | HSK 100-A | 27 | 1 Stück |
€419.71
|
|||
| 49 |
|
2372420X160 | 10 | 20 | 52 | 160 | M16 x 1 | 33 | HSK 100-A | 42 | 1 Stück |
€419.71
|
|||
| 20 |
|
2372410X160 | 10 | 10 | 41 | 160 | M8 x 1 | 24 | HSK 100-A | 32 | 1 Stück |
€419.71
|
|||
| 34 |
|
2372316X95 | 10 | 16 | 50 | 95 | M12 x 1 | 27 | HSK 63-A | 34 | 1 Stück |
€214.44
|
|||
| 8 |
|
237236X160 | 10 | 6 | 36 | 160 | M5 | 21 | HSK 63-A | 27 | 1 Stück |
€324.87
|
|||
| 52 |
|
2372425X160 | 10 | 25 | 58 | 160 | M16 x 1 | 44 | HSK 100-A | 53 | 1 Stück |
€419.71
|
|||
| 16 |
|
2372310X85 | 10 | 10 | 41 | 85 | M8 x 1 | 24 | HSK 63-A | 32 | 1 Stück |
€214.44
|
|||
| 26 |
|
2372312X160 | 10 | 12 | 47 | 160 | M10 x 1 | 24 | HSK 63-A | 32 | 1 Stück |
€324.87
|
|||
| 1 |
|
237233X80 | 16 | 3 | 28 | 80 | M6 | 10 | HSK 63-A | 15 | 1 Stück |
€255.14
|
