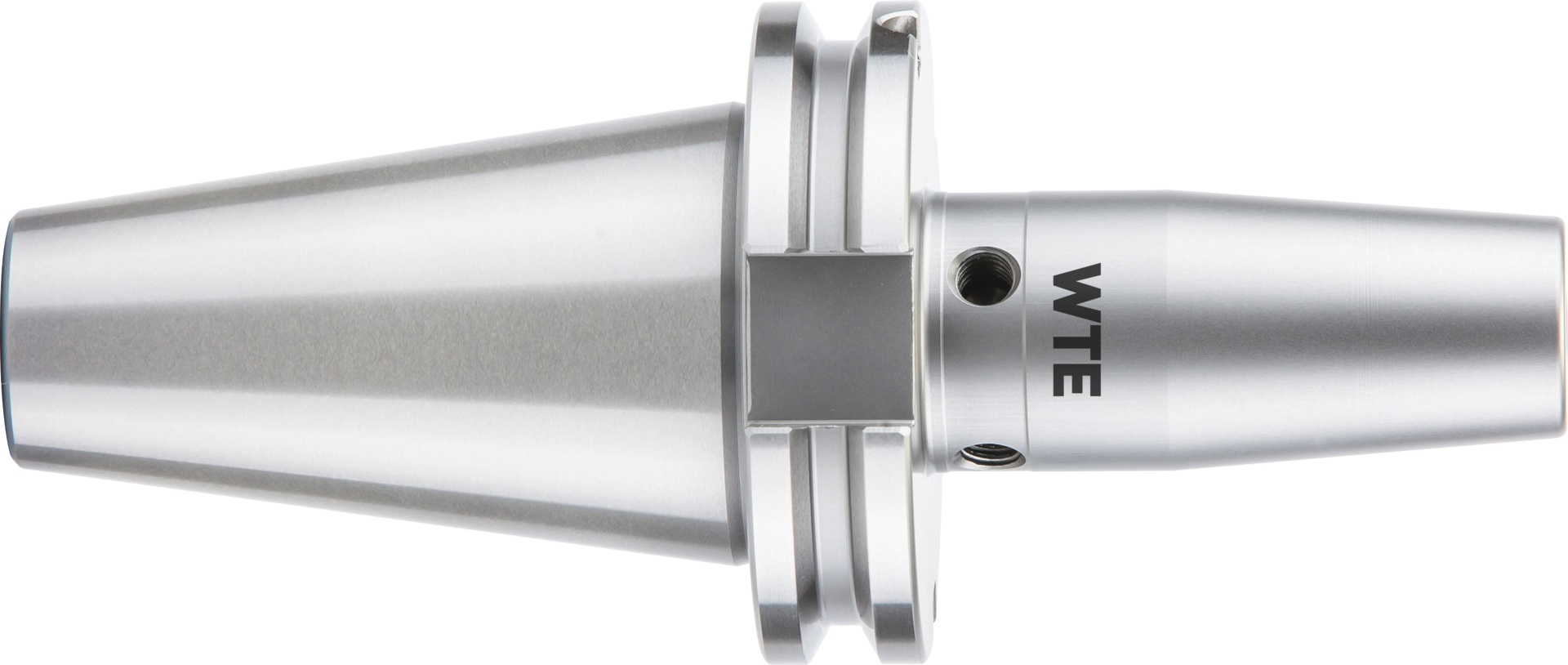

Schrumpffutter SK40 DIN69871 Form AD/B D10mm L80mm
Compare
Hinweis:
Schrumpffutter auf Anfrage auch in anderen Abmessungen und Spindelschnittstellen lieferbar!
| Aufnahme: | SK 40 |
|---|---|
| Einsatz: | Fräsen im Werkzeug- und Formenbau, Schwerzerspannung, Bohren und Reiben |
| Form: | AD/B |
| IK: | ja |
| Norm: | ISO 7388-1/DIN 69871 |
| Wuchtgüte: | G2,5 25000 |
Variants

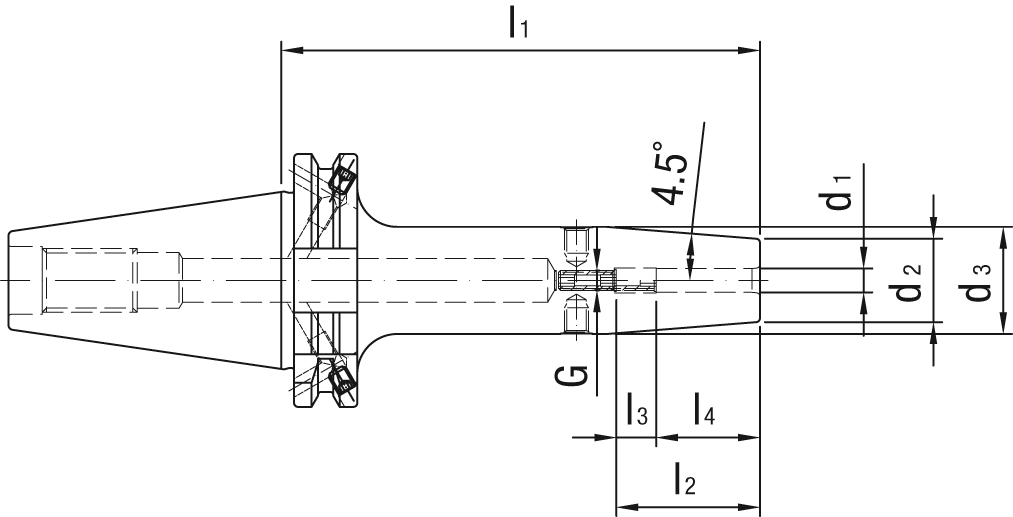

| Position | Code | l3 (mm) | l2 (mm) | Gewinde | d2 (mm) | d1 (mm) | l1 (mm) | d3 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 |
|
2347210X80 | 10 | 41 | M8 x 1 | 24 | 10 | 80 | 32 | 1 Stück |
€181.59
|
|||
| 11 |
|
234728X120 | 10 | 36 | M6 | 21 | 8 | 120 | 27 | 1 Stück |
€243.83
|
|||
| 3 |
|
234724X80 | 12 | 28 | M6 | 15 | 4 | 80 | 22 | 1 Stück |
€210.63
|
|||
| 6 |
|
234726X120 | 10 | 36 | M5 | 21 | 6 | 120 | 27 | 1 Stück |
€243.83
|
|||
| 13 |
|
234728X160 | 10 | 36 | M6 | 21 | 8 | 160 | 27 | 1 Stück |
€272.51
|
|||
| 16 |
|
2347210X120 | 10 | 41 | M8 x 1 | 24 | 10 | 120 | 32 | 1 Stück |
€243.83
|
|||
| 20 |
|
2347212X80 | 10 | 47 | M10 x 1 | 24 | 12 | 80 | 32 | 1 Stück |
€181.59
|
|||
| 45 |
|
2347225X100 | 10 | 58 | M16 x 1 | 44 | 25 | 100 | 53 | 1 Stück |
€181.59
|
|||
| 30 |
|
2347216X80 | 10 | 50 | M12 x 1 | 27 | 16 | 80 | 34 | 1 Stück |
€181.59
|
|||
| 10 |
|
234728X80 | 10 | 36 | M6 | 21 | 8 | 80 | 27 | 1 Stück |
€181.59
|
|||
| 36 |
|
2347218X120 | 10 | 50 | M12 x 1 | 33 | 18 | 120 | 42 | 1 Stück |
€243.83
|
|||
| 33 |
|
2347216X160 | 10 | 50 | M12 x 1 | 27 | 16 | 160 | 34 | 1 Stück |
€272.51
|
|||
| 31 |
|
2347216X120 | 10 | 50 | M12 x 1 | 27 | 16 | 120 | 34 | 1 Stück |
€243.83
|
|||
| 23 |
|
2347212X160 | 10 | 47 | M10 x 1 | 24 | 12 | 160 | 32 | 1 Stück |
€272.51
|
|||
| 26 |
|
2347214X120 | 10 | 47 | M10 x 1 | 27 | 14 | 120 | 34 | 1 Stück |
€243.83
|
|||
| 38 |
|
2347218X160 | 10 | 50 | M12 x 1 | 33 | 18 | 160 | 42 | 1 Stück |
€272.51
|
|||
| 35 |
|
2347218X80 | 10 | 50 | M12 x 1 | 33 | 18 | 80 | 42 | 1 Stück |
€181.59
|
|||
| 28 |
|
2347214X160 | 10 | 47 | M10 x 1 | 27 | 14 | 160 | 34 | 1 Stück |
€272.51
|
|||
| 4 |
|
234725X80 | 10 | 30 | M6 | 15 | 5 | 80 | 22 | 1 Stück |
€210.63
|
|||
| 48 |
|
2347225X160 | 10 | 58 | M16 x 1 | 44 | 25 | 160 | 53 | 1 Stück |
€272.51
|
|||
| 21 |
|
2347212X120 | 10 | 47 | M10 x 1 | 24 | 12 | 120 | 32 | 1 Stück |
€243.83
|
|||
| 40 |
|
2347220X80 | 10 | 52 | M16 x 1 | 33 | 20 | 80 | 42 | 1 Stück |
€181.59
|
|||
| 1 |
|
234723X80 | 16 | 28 | M6 | 10 | 3 | 80 | 17 | 1 Stück |
€210.63
|
|||
| 8 |
|
234726X160 | 10 | 36 | M5 | 21 | 6 | 160 | 27 | 1 Stück |
€272.51
|
|||
| 5 |
|
234726X80 | 10 | 36 | M5 | 21 | 6 | 80 | 27 | 1 Stück |
€178.14
|
|||
| 43 |
|
2347220X160 | 10 | 52 | M16 x 1 | 33 | 20 | 160 | 42 | 1 Stück |
€272.51
|
|||
| 41 |
|
2347220X120 | 10 | 52 | M16 x 1 | 33 | 20 | 120 | 42 | 1 Stück |
€243.83
|
|||
| 25 |
|
2347214X80 | 10 | 47 | M10 x 1 | 27 | 14 | 80 | 34 | 1 Stück |
€181.59
|
