Spiralbohrer überlang HSS Typ GT 130° DIN1869 D6mm
Compare
| Drallrichtung: | rechts |
|---|---|
| Einsatz: | für tiefe oder tiefliegende Bohrungen in Grauguss, Stählen bis 1000 N/mm², ausgenommen Chrom-Nickel-Stähle, VA usw. |
| Einsatzgebiet: | Gusseisen, Nichteisenmetalle, Stahl |
| Form des Schaftes: | Zylinder |
| Material: | HSS |
| Norm: | DIN 1869 |
| Schneidrichtung: | rechts |
| Spitzenwinkel (°): | 130 |
| Typ: | GT |
| Z: | 2 |
Variants

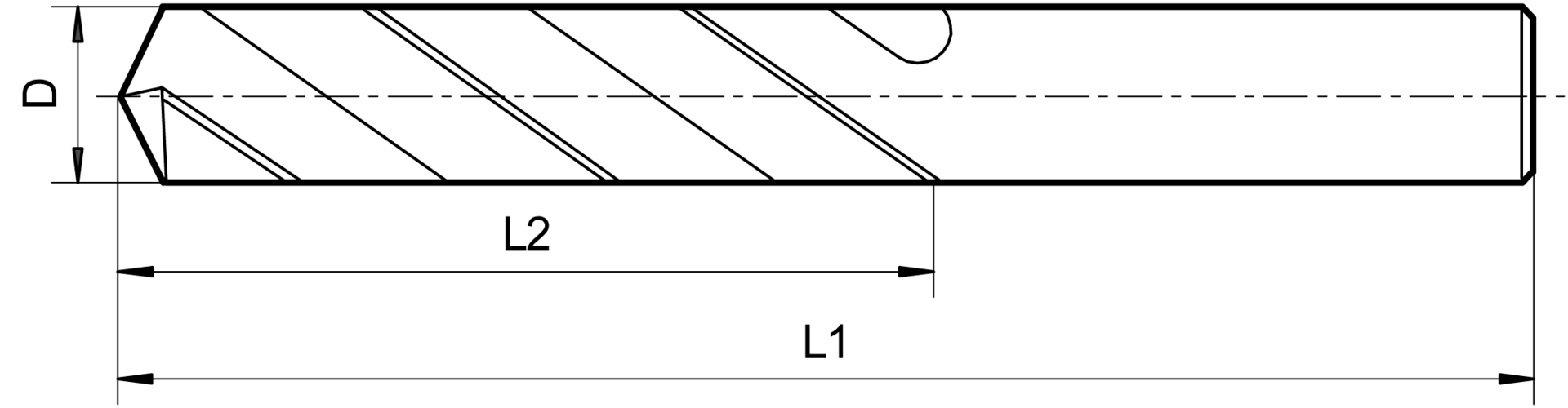

| Position | Code | d (mm) | L1 (mm) | D (mm) | L2 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 |
|
113006,8X225 | 6,8 | 225 | 6,8 | 155 | 1 Stück |
€35.58
|
|||
| 36 |
|
113008,5X305 | 8,5 | 305 | 8,5 | 210 | 1 Stück |
€67.35
|
|||
| 39 |
|
113009X320 | 9 | 320 | 9 | 220 | 1 Stück |
€79.37
|
|||
| 42 |
|
1130010X265 | 10 | 265 | 10 | 185 | 1 Stück |
€61.64
|
|||
| 14 |
|
113005X245 | 5 | 245 | 5 | 170 | 1 Stück |
€43.55
|
|||
| 9 |
|
113004X280 | 4 | 280 | 4 | 190 | 1 Stück |
€49.62
|
|||
| 27 |
|
113007X225 | 7 | 225 | 7 | 155 | 1 Stück |
€38.91
|
|||
| 48 |
|
1130012X480 | 12 | 480 | 12 | 330 | 1 Stück |
€147.20
|
|||
| 1 |
|
113003X150 | 3 | 150 | 3 | 100 | 1 Stück |
€26.66
|
|||
| 3 |
|
113003X240 | 3 | 240 | 3 | 160 | 1 Stück |
€41.29
|
|||
| 44 |
|
1130010X430 | 10 | 430 | 10 | 295 | 1 Stück |
€113.17
|
|||
| 35 |
|
113008,5X240 | 8,5 | 240 | 8,5 | 165 | 1 Stück |
€48.19
|
|||
| 33 |
|
113008X305 | 8 | 305 | 8 | 210 | 1 Stück |
€58.31
|
|||
| 18 |
|
113005,5X330 | 5,5 | 330 | 5,5 | 225 | 1 Stück |
€70.92
|
|||
| 37 |
|
113008,5X390 | 8,5 | 390 | 8,5 | 265 | 1 Stück |
€93.18
|
|||
| 22 |
|
113006,5X215 | 6,5 | 215 | 6,5 | 150 | 1 Stück |
€31.06
|
|||
| 28 |
|
113007X290 | 7 | 290 | 7 | 200 | 1 Stück |
€55.45
|
|||
| 29 |
|
113007X370 | 7 | 370 | 7 | 250 | 1 Stück |
€86.75
|
|||
| 23 |
|
113006,5X275 | 6,5 | 275 | 6,5 | 190 | 1 Stück |
€57.24
|
|||
| 43 |
|
1130010X340 | 10 | 340 | 10 | 235 | 1 Stück |
€77.47
|
|||
| 17 |
|
113005,5X260 | 5,5 | 260 | 5,5 | 180 | 1 Stück |
€46.77
|
|||
| 40 |
|
113009X410 | 9 | 410 | 9 | 280 | 1 Stück |
€103.65
|
|||
| 7 |
|
113004X175 | 4 | 175 | 4 | 120 | 1 Stück |
€32.96
|
|||
| 4 |
|
113003,5X165 | 3,5 | 165 | 3,5 | 115 | 1 Stück |
€30.46
|
|||
| 10 |
|
113004,5X185 | 4,5 | 185 | 4,5 | 125 | 1 Stück |
€36.53
|
|||
| 21 |
|
113006X330 | 6 | 330 | 6 | 225 | 1 Stück |
€66.16
|
|||
| 41 |
|
113009,5X320 | 9,5 | 320 | 9,5 | 220 | 1 Stück |
€100.20
|
|||
| 47 |
|
1130012X375 | 12 | 375 | 12 | 260 | 1 Stück |
€123.52
|
|||
| 24 |
|
113006,5X350 | 6,5 | 350 | 6,5 | 235 | 1 Stück |
€70.92
|
|||
| 20 |
|
113006X260 | 6 | 260 | 6 | 180 | 1 Stück |
€48.31
|
|||
| 5 |
|
113003,5X210 | 3,5 | 210 | 3,5 | 145 | 1 Stück |
€35.22
|
|||
| 11 |
|
113004,5X235 | 4,5 | 235 | 4,5 | 160 | 1 Stück |
€45.93
|
|||
| 46 |
|
1130012X295 | 12 | 295 | 12 | 205 | 1 Stück |
€87.23
|
|||
| 12 |
|
113004,5X295 | 4,5 | 295 | 4,5 | 200 | 1 Stück |
€70.09
|
|||
| 38 |
|
113009X250 | 9 | 250 | 9 | 175 | 1 Stück |
€54.03
|
|||
| 32 |
|
113008X240 | 8 | 240 | 8 | 165 | 1 Stück |
€39.15
|
|||
| 6 |
|
113003,5X265 | 3,5 | 265 | 3,5 | 180 | 1 Stück |
€52.24
|
|||
| 2 |
|
113003X190 | 3 | 190 | 3 | 130 | 1 Stück |
€39.15
|
|||
| 8 |
|
113004X220 | 4 | 220 | 4 | 150 | 1 Stück |
€36.65
|
|||
| 34 |
|
113008X390 | 8 | 390 | 8 | 265 | 1 Stück |
€85.92
|
|||
| 16 |
|
113005,5X205 | 5,5 | 205 | 5,5 | 140 | 1 Stück |
€30.34
|
|||
| 45 |
|
1130010,2X340 | 10,2 | 340 | 10,2 | 235 | 1 Stück |
€106.86
|
|||
| 19 |
|
113006X205 | 6 | 205 | 6 | 140 | 1 Stück |
€29.75
|
|||
| 13 |
|
113005X195 | 5 | 195 | 5 | 135 | 1 Stück |
€25.94
|
|||
| 15 |
|
113005X315 | 5 | 315 | 5 | 210 | 1 Stück |
€58.31
|
