Stechklemmhalter WMT™ außen links H32mm Tmax25mm W8mm
Compare
| Einsatz: | zum radialen Einstechdrehen, Abstechdrehen und Profildrehen |
|---|---|
| Form des Schaftes: | 4-kant |
| Norm: | Werksnorm |
Variants

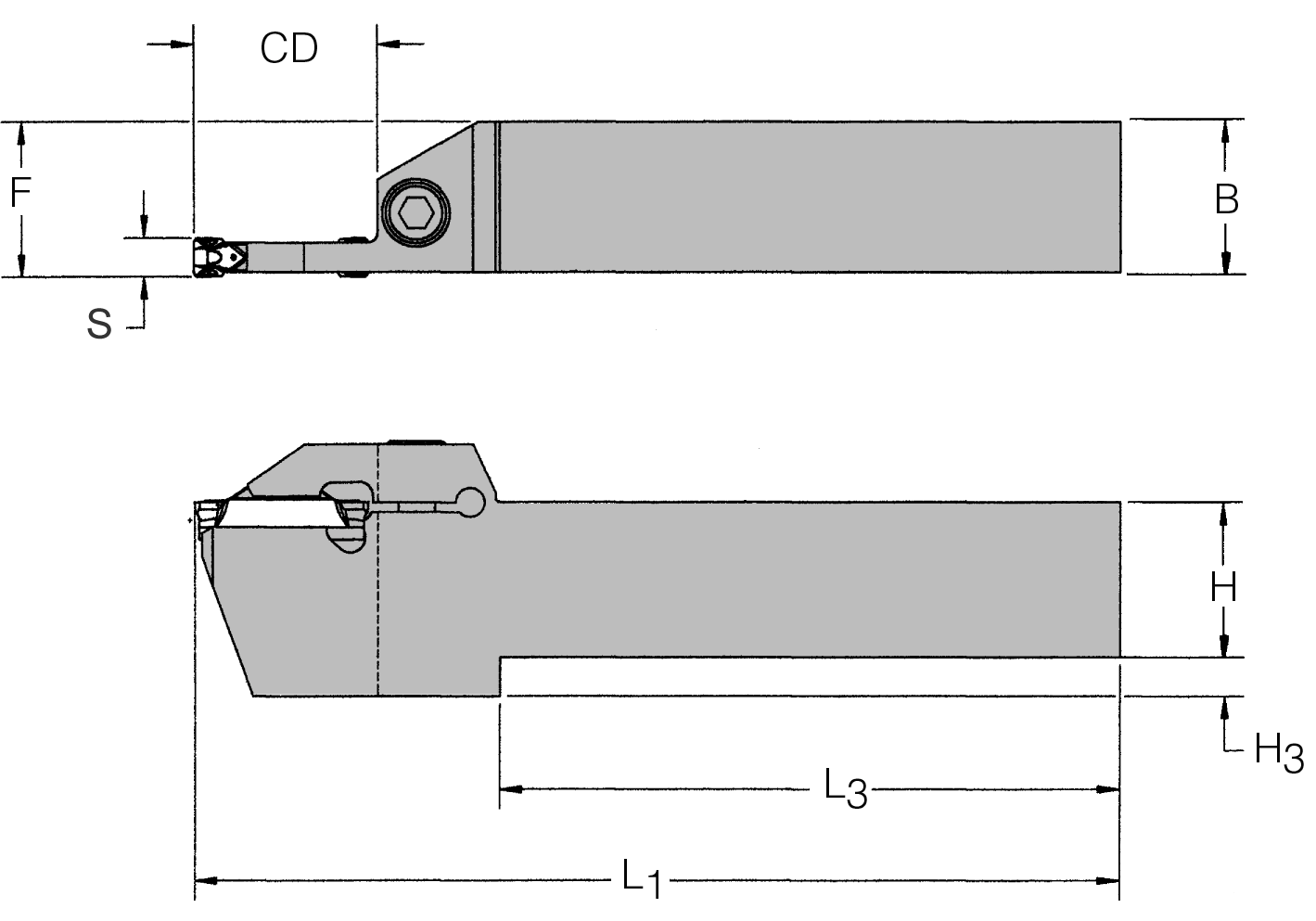

| Position | Code | H (mm) | B (mm) | Gr- | F (mm) | Ausführung | CD (mm) | H3 (mm) | L3 (mm) | L1 (mm) | S (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 |
|
199600R2022-3 | 20 | 20 | 3 | 20 | rechts | 22 | 5 | 85 | 125 | 3 | 1 Stück |
€129.71
|
|||
| 11 |
|
199600R1611-4 | 16 | 16 | 4 | 16 | rechts | 11 | - | 92 | 125 | 4 | 1 Stück |
€129.71
|
|||
| 21 |
|
199600R2525-5 | 25 | 25 | 5 | 25 | rechts | 25 | - | 104 | 150 | 5 | 1 Stück |
€144.58
|
|||
| 7 |
|
199600R2011-3 | 20 | 20 | 3 | 20 | rechts | 11 | - | 93 | 125 | 3 | 1 Stück |
€129.71
|
|||
| 31 |
|
199600L20-2 | 20 | 20 | 2 | 20 | links | 17 | - | 92 | 125 | 2 | 1 Stück |
€129.71
|
|||
| 9 |
|
199600R2511-3 | 25 | 25 | 3 | 25 | rechts | 11 | - | 118 | 150 | 3 | 1 Stück |
€144.58
|
|||
| 12 |
|
199600R1622-4 | 16 | 16 | 4 | 16 | rechts | 22 | 5 | 83 | 125 | 4 | 1 Stück |
€129.71
|
|||
| 35 |
|
199600L2011-3 | 20 | 20 | 3 | 20 | links | 11 | - | 93 | 125 | 3 | 1 Stück |
€129.71
|
|||
| 56 |
|
199600L3225-8 | 32 | 32 | 8 | 32 | links | 25 | - | 104 | 150 | 8 | 1 Stück |
€207.06
|
|||
| 30 |
|
199600L16-2 | 16 | 16 | 2 | 16 | links | 17 | 6 | 101 | 125 | 2 | 1 Stück |
€129.71
|
|||
| 34 |
|
199600L1622-3 | 16 | 16 | 3 | 16 | links | 22 | 5 | 85 | 125 | 3 | 1 Stück |
€129.71
|
|||
| 37 |
|
199600L2511-3 | 25 | 25 | 3 | 25 | links | 11 | - | 118 | 150 | 3 | 1 Stück |
€144.58
|
|||
| 26 |
|
199600R2525-8 | 25 | 25 | 8 | 25 | rechts | 25 | - | 104 | 150 | 8 | 1 Stück |
€150.53
|
|||
| 33 |
|
199600L1611-3 | 16 | 16 | 3 | 16 | links | 11 | - | 93 | 125 | 3 | 1 Stück |
€129.71
|
|||
| 14 |
|
199600R2022-4 | 20 | 20 | 4 | 20 | rechts | 22 | - | 83 | 125 | 4 | 1 Stück |
€129.71
|
|||
| 46 |
|
199600L2014-5 | 20 | 20 | 5 | 20 | links | 14 | - | 88 | 125 | 5 | 1 Stück |
€129.71
|
|||
| 40 |
|
199600L1622-4 | 16 | 16 | 4 | 16 | links | 22 | 5 | 83 | 125 | 4 | 1 Stück |
€129.71
|
|||
| 24 |
|
199600R2525-6 | 25 | 25 | 6 | 25 | rechts | 25 | - | 104 | 150 | 6 | 1 Stück |
€144.58
|
|||
| 36 |
|
199600L2022-3 | 20 | 20 | 3 | 20 | links | 22 | 5 | 85 | 125 | 3 | 1 Stück |
€129.71
|
|||
| 49 |
|
199600L2525-5 | 25 | 25 | 5 | 25 | links | 25 | - | 104 | 150 | 5 | 1 Stück |
€142.20
|
|||
| 19 |
|
199600R2015-5 | 20 | 20 | 5 | 20 | rechts | 15 | - | 93 | 140 | 5 | 1 Stück |
€129.71
|
|||
| 5 |
|
199600R1611-3 | 16 | 16 | 3 | 16 | rechts | 11 | - | 93 | 125 | 3 | 1 Stück |
€129.71
|
|||
| 23 |
|
199600R2514-6 | 25 | 25 | 6 | 25 | rechts | 14 | - | 114 | 150 | 6 | 1 Stück |
€144.58
|
|||
| 13 |
|
199600R2011-4 | 20 | 20 | 4 | 20 | rechts | 11 | - | 92 | 125 | 4 | 1 Stück |
€129.71
|
|||
| 43 |
|
199600L2511-4 | 25 | 25 | 4 | 25 | links | 11 | - | 117 | 150 | 4 | 1 Stück |
€144.58
|
|||
| 1 |
|
199600R25-1 | 25 | 25 | 1 | 25 | rechts | 17 | - | 116 | 150 | 1,5 | 1 Stück |
€144.58
|
|||
| 3 |
|
199600R20-2 | 20 | 20 | 2 | 20 | rechts | 17 | - | 92 | 125 | 2 | 1 Stück |
€129.71
|
|||
| 10 |
|
199600R2522-3 | 25 | 25 | 3 | 25 | rechts | 22 | - | 110 | 150 | 3 | 1 Stück |
€144.58
|
|||
| 32 |
|
199600L25-2 | 25 | 25 | 2 | 25 | links | 17 | - | 116 | 150 | 2 | 1 Stück |
€144.58
|
|||
| 18 |
|
199600R2014-5 | 20 | 20 | 5 | 20 | rechts | 14 | - | 88 | 125 | 5 | 1 Stück |
€129.71
|
|||
| 25 |
|
199600R2514-8 | 25 | 25 | 8 | 25 | rechts | 14 | - | 113 | 150 | 8 | 1 Stück |
€150.53
|
|||
| 4 |
|
199600R25-2 | 25 | 25 | 2 | 25 | rechts | 17 | - | 116 | 150 | 2 | 1 Stück |
€144.58
|
|||
| 42 |
|
199600L2022-4 | 20 | 20 | 4 | 20 | links | 22 | 5 | 83 | 125 | 4 | 1 Stück |
€129.71
|
|||
| 22 |
|
199600R2014-6 | 20 | 20 | 6 | 20 | rechts | 14 | - | 103 | 140 | 6 | 1 Stück |
€129.71
|
|||
| 45 |
|
199600L1614-5 | 16 | 16 | 5 | 16 | links | 14 | - | 88 | 125 | 5 | 1 Stück |
€129.71
|
|||
| 41 |
|
199600L2011-4 | 20 | 20 | 4 | 20 | links | 11 | - | 92 | 125 | 4 | 1 Stück |
€129.71
|
|||
| 55 |
|
199600L3214-8 | 32 | 32 | 8 | 32 | links | 14 | - | 113 | 150 | 8 | 1 Stück |
€207.06
|
|||
| 53 |
|
199600L2514-8 | 25 | 25 | 8 | 25 | links | 14 | - | 113 | 150 | 8 | 1 Stück |
€150.53
|
|||
| 20 |
|
199600R2514-5 | 25 | 25 | 5 | 25 | rechts | 14 | - | 115 | 150 | 5 | 1 Stück |
€144.58
|
|||
| 48 |
|
199600L2514-5 | 25 | 25 | 5 | 25 | links | 14 | - | 113 | 150 | 5 | 1 Stück |
€144.58
|
|||
| 44 |
|
199600L2522-4 | 25 | 25 | 4 | 25 | links | 22 | - | 109 | 150 | 4 | 1 Stück |
€144.58
|
|||
| 6 |
|
199600R1622-3 | 16 | 16 | 3 | 16 | rechts | 22 | 5 | 85 | 125 | 3 | 1 Stück |
€129.71
|
|||
| 54 |
|
199600L2525-8 | 25 | 25 | 8 | 25 | links | 25 | - | 104 | 150 | 8 | 1 Stück |
€150.53
|
|||
| 15 |
|
199600R2511-4 | 25 | 25 | 4 | 25 | rechts | 11 | - | 117 | 150 | 4 | 1 Stück |
€144.58
|
|||
| 29 |
|
199600L25-1 | 25 | 25 | 1 | 25 | links | 17 | - | 116 | 150 | 1,5 | 1 Stück |
€144.58
|
|||
| 16 |
|
199600R2522-4 | 25 | 25 | 4 | 25 | rechts | 22 | - | 109 | 150 | 4 | 1 Stück |
€144.58
|
|||
| 38 |
|
199600L2522-3 | 25 | 25 | 3 | 25 | links | 22 | - | 110 | 150 | 3 | 1 Stück |
€144.58
|
|||
| 51 |
|
199600L2514-6 | 25 | 25 | 6 | 25 | links | 14 | - | 114 | 150 | 6 | 1 Stück |
€144.58
|
|||
| 2 |
|
199600R16-2 | 16 | 16 | 2 | 16 | rechts | 17 | 6 | 101 | 125 | 2 | 1 Stück |
€129.71
|
|||
| 52 |
|
199600L2525-6 | 25 | 25 | 6 | 25 | links | 25 | - | 104 | 150 | 6 | 1 Stück |
€144.58
|
|||
| 27 |
|
199600R3214-8 | 32 | 32 | 8 | 32 | rechts | 14 | - | 113 | 150 | 8 | 1 Stück |
€207.06
|
|||
| 28 |
|
199600R3225-8 | 32 | 32 | 8 | 32 | rechts | 25 | - | 104 | 150 | 8 | 1 Stück |
€207.06
|
