Wendeplattenhalter Ø20-32mm Kerbverzahnung für CC..0602.. A20-22 x1=12mm

Product number: 1244781

i

Select individual items in the table below for detailed information, additional images and documents.

€246.33*

Prices incl. VAT plus shipping costs

excl. VAT

incl. VAT

ex works

Print product details

Compare

Downloads

werkstoffuebersicht

schnittwertempfehlungen

die Kerbverzahnung für bestmögliche Stabilität

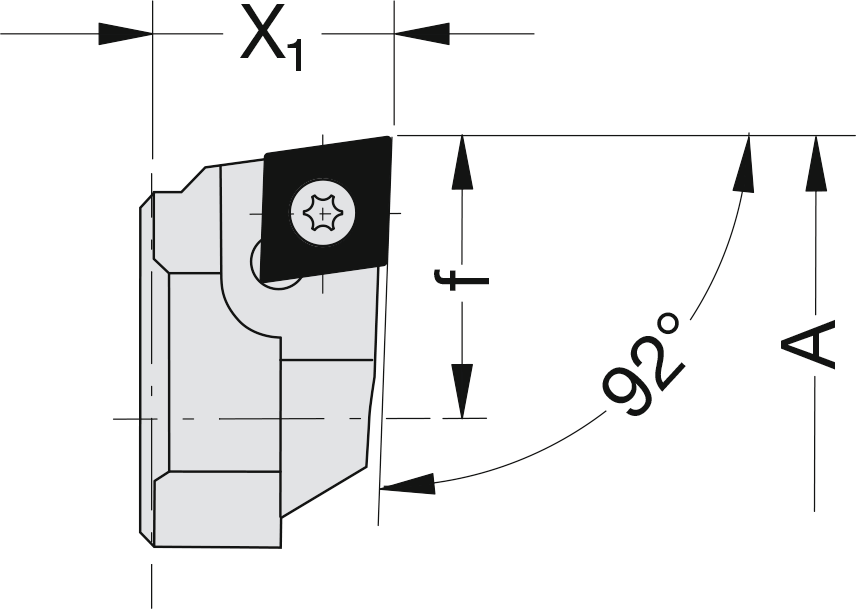

x1 (mm):	12

Variants

Position		Code	A (mm)	Passend zu	f (mm)	Quantity	PU	Price/PU
1		1244781	20 - 22	WSP CC..0602..	13,6		1 Stück	€246.33		Compare
1		124471	20 - 22	WSP TO..0802..	13,6		1 Stück	€242.76		Compare
3		1244783	24 - 26	WSP CC..0602..	15,6		1 Stück	€246.33		Compare
4		124474	26 - 28	WSP TO..0802..	16,6		1 Stück	€242.76		Compare
4		1244784	26 - 28	WSP CC..0602..	16,6		1 Stück	€246.33		Compare
2		1244782	22 - 24	WSP CC..0602..	14,6		1 Stück	€246.33		Compare
2		124472	22 - 24	WSP TO..0802..	14,6		1 Stück	€242.76		Compare
3		124473	24 - 26	WSP TO..0802..	15,6		1 Stück	€242.76		Compare
6		1244786	30 - 32	WSP CC..0602..	18,6		1 Stück	€280.84		Compare
5		124475	28 - 30	WSP TO..0802..	17,6		1 Stück	€242.76		Compare
6		124476	30 - 32	WSP TO..0802..	18,6		1 Stück	€273.70		Compare
5		1244785	28 - 30	WSP CC..0602..	17,6		1 Stück	€246.33		Compare
