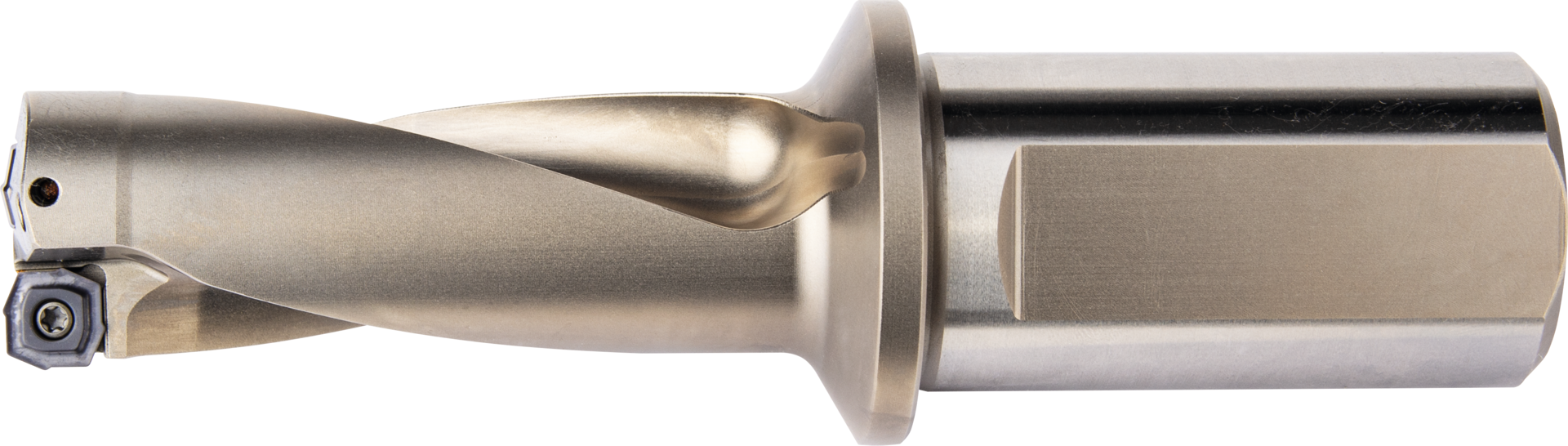

Wendeschneidplattenbohrer TopCut Four™ IK 5xD für WSP Gr. F D40mm
Compare
Lieferumfang:
- Wendeschneidplattenbohrer
- Spannschrauben
- Torx-Schlüssel
| Einsatz: | für stabile und instabile Bedingungen bei vielseitigen Bohranwendungen und Werkstückmaterialien, ohne Pilotbohrung, in allen handelsüblichen Werkzeugaufnahmen, auf BAZ und CNC-Maschinen |
|---|---|
| Einstellbarkeit: | Nein |
| IK: | mit Kühlschmierstoff-Austritt axial schräg |
| Norm: | Werksnorm |
| Schneidrichtung: | rechts |
| x D: | 5 |
Variants

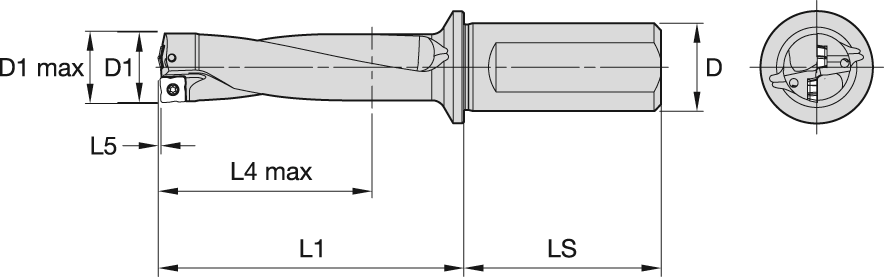

| Position | Code | D1 (mm) | L5 (mm) | D (mm) | L1 (mm) | L (mm) | L4 max (mm) | LS (mm) | Passend zu | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42 |
|
12240440 | 40 | 1,45 | 40 | 243,4 | 313,4 | 201 | 70 | WSP-Gr. F | 1 Stück |
€604.52
|
|||
| 23 |
|
12240423 | 23 | 0,8 | 25 | 145,8 | 201,8 | 115 | 56 | WSP-Gr. C | 1 Stück |
€494.44
|
|||
| 26 |
|
12240426 | 26 | 0,94 | 32 | 161,9 | 221,9 | 130 | 60 | WSP-Gr. D | 1 Stück |
€494.44
|
|||
| 51 |
|
12240449 | 49 | 1,76 | 40 | 292,8 | 362,8 | 246 | 70 | WSP-Gr. G | 1 Stück |
€654.50
|
|||
| 65 |
|
12240462 | 62 | 2,2 | 40 | 362,2 | 432,2 | 312 | 70 | WSP-Gr. H | 1 Stück |
€766.36
|
|||
| 62 |
|
12240459 | 59 | 2,12 | 40 | 345,1 | 415,1 | 297 | 70 | WSP-Gr. H | 1 Stück |
€711.62
|
|||
| 4 |
|
12240413 | 13 | 0,47 | 20 | 85,5 | 135,5 | 65 | 50 | WSP-Gr. A | 1 Stück |
€460.53
|
|||
| 5 |
|
12240413,5 | 13,5 | 0,48 | 20 | 89 | 139 | 68 | 50 | WSP-Gr. A | 1 Stück |
€460.53
|
|||
| 39 |
|
12240437,5 | 37,5 | 1,36 | 40 | 228,9 | 298,9 | 188 | 70 | WSP-Gr. F | 1 Stück |
€604.52
|
|||
| 64 |
|
12240461 | 61 | 2,18 | 40 | 356,2 | 426,2 | 307 | 70 | WSP-Gr. H | 1 Stück |
€766.36
|
|||
| 28 |
|
12240427 | 27 | 0,97 | 32 | 168 | 228 | 136 | 60 | WSP-Gr. D | 1 Stück |
€494.44
|
|||
| 37 |
|
12240436 | 36 | 1,27 | 40 | 220,3 | 290,3 | 181 | 70 | WSP-Gr. E | 1 Stück |
€527.76
|
|||
| 58 |
|
12240455 | 55 | 1,92 | 40 | 326,9 | 396,9 | 276 | 70 | WSP-Gr. G | 1 Stück |
€711.62
|
|||
| 34 |
|
12240433 | 33 | 1,18 | 40 | 202,2 | 272,2 | 166 | 70 | WSP-Gr. E | 1 Stück |
€527.76
|
|||
| 69 |
|
12240466 | 66 | 2,31 | 40 | 385,3 | 455,3 | 332 | 70 | WSP-Gr. H | 1 Stück |
€766.36
|
|||
| 17 |
|
12240419,5 | 19,5 | 0,71 | 25 | 124,2 | 180,2 | 98 | 56 | WSP-Gr. C | 1 Stück |
€494.44
|
|||
| 1 |
|
12240412 | 12 | 0,43 | 20 | 79,4 | 129,4 | 60 | 50 | WSP-Gr. A | 1 Stück |
€460.53
|
|||
| 49 |
|
12240447 | 47 | 1,7 | 40 | 280,7 | 350,7 | 236 | 70 | WSP-Gr. G | 1 Stück |
€604.52
|
|||
| 31 |
|
12240430 | 30 | 1,09 | 32 | 183,1 | 243,1 | 151 | 60 | WSP-Gr. E | 1 Stück |
€527.76
|
|||
| 55 |
|
12240452 | 52 | 1,84 | 40 | 309,8 | 379,8 | 261 | 70 | WSP-Gr. G | 1 Stück |
€654.50
|
|||
| 60 |
|
12240457 | 57 | 2,06 | 40 | 333,1 | 403,1 | 287 | 70 | WSP-Gr. H | 1 Stück |
€711.62
|
|||
| 67 |
|
12240464 | 64 | 2,26 | 40 | 373,3 | 443,3 | 322 | 70 | WSP-Gr. H | 1 Stück |
€766.36
|
|||
| 53 |
|
12240450,5 | 50,5 | 1,8 | 40 | 301,3 | 371,3 | 254 | 70 | WSP-Gr. G | 1 Stück |
€654.50
|
|||
| 61 |
|
12240458 | 58 | 2,09 | 40 | 339,1 | 409,1 | 292 | 70 | WSP-Gr. H | 1 Stück |
€711.62
|
|||
| 36 |
|
12240435 | 35 | 1,24 | 40 | 214,2 | 284,2 | 176 | 70 | WSP-Gr. E | 1 Stück |
€527.76
|
|||
| 43 |
|
12240441 | 41 | 1,48 | 40 | 249,5 | 319,5 | 206 | 70 | WSP-Gr. F | 1 Stück |
€604.52
|
|||
| 15 |
|
12240418,5 | 18,5 | 0,65 | 25 | 118,2 | 174,2 | 93 | 56 | WSP-Gr. B | 1 Stück |
€494.44
|
|||
| 7 |
|
12240414,5 | 14,5 | 0,52 | 25 | 93 | 149 | 73 | 56 | WSP-Gr. B | 1 Stück |
€460.53
|
|||
| 45 |
|
12240443 | 43 | 1,53 | 40 | 261,5 | 331,5 | 216 | 70 | WSP-Gr. F | 1 Stück |
€604.52
|
|||
| 52 |
|
12240450 | 50 | 1,79 | 40 | 297,8 | 367,8 | 251 | 70 | WSP-Gr. G | 1 Stück |
€654.50
|
|||
| 50 |
|
12240448 | 48 | 1,73 | 40 | 286,7 | 356,7 | 241 | 70 | WSP-Gr. G | 1 Stück |
€604.52
|
|||
| 40 |
|
12240438 | 38 | 1,38 | 40 | 232,4 | 302,4 | 191 | 70 | WSP-Gr. F | 1 Stück |
€604.52
|
|||
| 57 |
|
12240454 | 54 | 1,89 | 40 | 321,9 | 391,9 | 271 | 70 | WSP-Gr. G | 1 Stück |
€654.50
|
|||
| 2 |
|
12240412,5 | 12,5 | 0,45 | 20 | 82 | 132 | 63 | 50 | WSP-Gr. A | 1 Stück |
€460.53
|
|||
| 13 |
|
12240417,5 | 17,5 | 0,63 | 25 | 112,1 | 168,1 | 88 | 56 | WSP-Gr. B | 1 Stück |
€478.97
|
|||
| 46 |
|
12240444 | 44 | 1,56 | 40 | 267,6 | 337,6 | 221 | 70 | WSP-Gr. F | 1 Stück |
€604.52
|
|||
| 71 |
|
12240468 | 68 | 2,36 | 40 | 396,4 | 466,4 | 342 | 70 | WSP-Gr. H | 1 Stück |
€766.36
|
|||
| 12 |
|
12240417 | 17 | 0,61 | 25 | 108,6 | 164,6 | 85 | 56 | WSP-Gr. B | 1 Stück |
€478.97
|
|||
| 68 |
|
12240465 | 65 | 2,28 | 40 | 379,3 | 449,3 | 327 | 70 | WSP-Gr. H | 1 Stück |
€766.36
|
|||
| 8 |
|
12240415 | 15 | 0,55 | 25 | 96,5 | 152,5 | 75 | 56 | WSP-Gr. B | 1 Stück |
€460.53
|
|||
| 10 |
|
12240416 | 16 | 0,58 | 25 | 102,6 | 158,6 | 80 | 56 | WSP-Gr. B | 1 Stück |
€460.53
|
|||
| 29 |
|
12240428 | 28 | 0,99 | 32 | 174 | 234 | 141 | 60 | WSP-Gr. D | 1 Stück |
€494.44
|
|||
| 70 |
|
12240467 | 67 | 2,33 | 40 | 390,3 | 460,3 | 337 | 70 | WSP-Gr. H | 1 Stück |
€766.36
|
|||
| 19 |
|
12240420,5 | 20,5 | 0,74 | 25 | 130,2 | 186,2 | 103 | 56 | WSP-Gr. C | 1 Stück |
€494.44
|
|||
| 41 |
|
12240439 | 39 | 1,41 | 40 | 238,4 | 308,4 | 196 | 70 | WSP-Gr. F | 1 Stück |
€604.52
|
|||
| 30 |
|
12240429 | 29 | 1,02 | 32 | 180 | 240 | 146 | 60 | WSP-Gr. D | 1 Stück |
€494.44
|
|||
| 66 |
|
12240463 | 63 | 2,23 | 40 | 368,2 | 438,2 | 317 | 70 | WSP-Gr. H | 1 Stück |
€766.36
|
|||
| 20 |
|
12240421 | 21 | 0,75 | 25 | 133,8 | 189,8 | 105 | 56 | WSP-Gr. C | 1 Stück |
€494.44
|
|||
| 33 |
|
12240432 | 32 | 1,15 | 32 | 195,2 | 255,2 | 161 | 60 | WSP-Gr. E | 1 Stück |
€527.76
|
|||
| 59 |
|
12240456 | 56 | 1,94 | 40 | 332,9 | 402,9 | 281 | 70 | WSP-Gr. G | 1 Stück |
€711.62
|
|||
| 6 |
|
12240414 | 14 | 0,49 | 25 | 90,5 | 146,5 | 70 | 56 | WSP-Gr. B | 1 Stück |
€460.53
|
|||
| 32 |
|
12240431 | 31 | 1,12 | 32 | 189,1 | 249,1 | 156 | 60 | WSP-Gr. E | 1 Stück |
€527.76
|
|||
| 18 |
|
12240420 | 20 | 0,72 | 25 | 126,7 | 182,7 | 100 | 56 | WSP-Gr. C | 1 Stück |
€494.44
|
|||
| 9 |
|
12240415,5 | 15,5 | 0,56 | 25 | 100,1 | 156,1 | 78 | 56 | WSP-Gr. B | 1 Stück |
€460.53
|
|||
| 14 |
|
12240418 | 18 | 0,64 | 25 | 114,6 | 170,6 | 90 | 56 | WSP-Gr. B | 1 Stück |
€478.97
|
|||
| 25 |
|
12240425 | 25 | 0,91 | 32 | 155,9 | 215,9 | 125 | 60 | WSP-Gr. D | 1 Stück |
€494.44
|
|||
| 27 |
|
12240426,5 | 26,5 | 0,95 | 32 | 165,5 | 225,5 | 133 | 60 | WSP-Gr. D | 1 Stück |
€494.44
|
|||
| 56 |
|
12240453 | 53 | 1,87 | 40 | 315,9 | 385,9 | 266 | 70 | WSP-Gr. G | 1 Stück |
€654.50
|
|||
| 21 |
|
12240422 | 22 | 0,78 | 25 | 139,8 | 195,8 | 110 | 56 | WSP-Gr. C | 1 Stück |
€494.44
|
|||
| 3 |
|
12240412,7 | 12,7 | 0,46 | 20 | 84 | 134 | 64 | 50 | WSP-Gr. A | 1 Stück |
€460.53
|
|||
| 48 |
|
12240446 | 46 | 1,67 | 40 | 274,7 | 344,7 | 231 | 70 | WSP-Gr. G | 1 Stück |
€604.52
|
|||
| 54 |
|
12240451 | 51 | 1,81 | 40 | 303,8 | 373,8 | 256 | 70 | WSP-Gr. G | 1 Stück |
€654.50
|
|||
| 47 |
|
12240445 | 45 | 1,59 | 40 | 273,6 | 343,6 | 226 | 70 | WSP-Gr. F | 1 Stück |
€604.52
|
|||
| 16 |
|
12240419 | 19 | 0,68 | 25 | 120,7 | 176,7 | 95 | 56 | WSP-Gr. C | 1 Stück |
€494.44
|
|||
| 22 |
|
12240422,5 | 22,5 | 0,79 | 25 | 142,3 | 198,3 | 113 | 56 | WSP-Gr. C | 1 Stück |
€494.44
|
|||
| 35 |
|
12240434 | 34 | 1,21 | 40 | 208,2 | 278,2 | 171 | 70 | WSP-Gr. E | 1 Stück |
€527.76
|
|||
| 38 |
|
12240437 | 37 | 1,35 | 40 | 226,3 | 296,3 | 186 | 70 | WSP-Gr. F | 1 Stück |
€604.52
|
|||
| 11 |
|
12240416,5 | 16,5 | 0,6 | 25 | 106,1 | 162,1 | 83 | 56 | WSP-Gr. B | 1 Stück |
€478.97
|
|||
| 44 |
|
12240442 | 42 | 1,51 | 40 | 255,5 | 325,5 | 211 | 70 | WSP-Gr. F | 1 Stück |
€604.52
|
|||
| 24 |
|
12240424 | 24 | 0,87 | 25 | 148,9 | 204,9 | 120 | 56 | WSP-Gr. D | 1 Stück |
€494.44
|
|||
| 63 |
|
12240460 | 60 | 2,15 | 40 | 350,1 | 420,1 | 302 | 70 | WSP-Gr. H | 1 Stück |
€711.62
|
