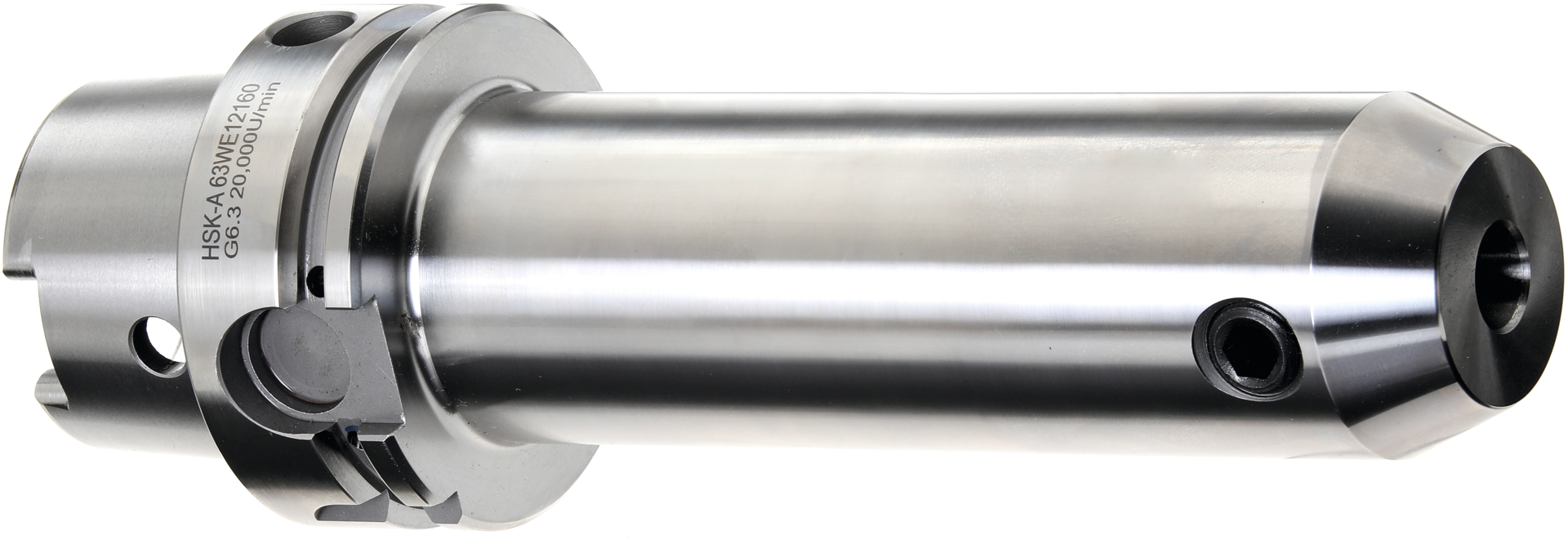

Aufnahme Zylinderschaft HSK63-A Weldon DIN69893 D6mm L65mm
Vergleichen
| Aufnahme: | Zylinder |
|---|---|
| Einsatz: | zum Spannen von Werkzeugen mit Zylinderschaft nach DIN 1835B/6359HB |
| Form: | A |
| IK: | ja |
| Norm: | DIN 69893 |
| Wuchtgüte: | G2,5 25000 |
Ausführungen

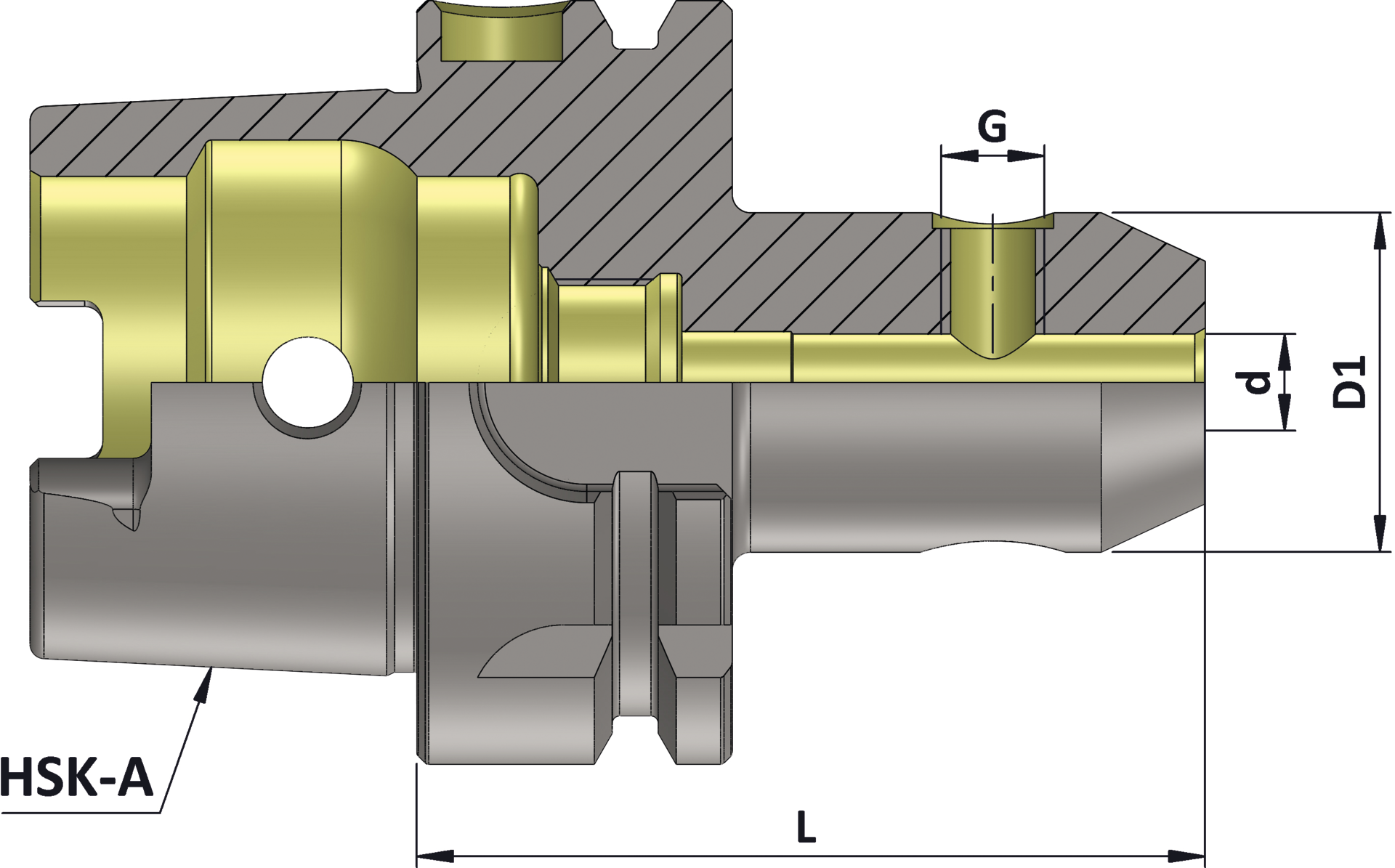

| Position | Code | Gewinde | l4 (mm) | d (mm) | Aufnahme | L (mm) | D1 (mm) | Anzahl | VE | Preis/VE | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11 |
|
2360110X65 | M10 | 41 | 10 | HSK 63-A | 65 | 35 | 1 Stück |
136,97 €
|
|||
| 21 |
|
23601725X160 | M18 x 2 | 60 | 25 | HSK 100-A | 160 | 65 | 1 Stück |
230,32 €
|
|||
| 1 |
|
236016X65 | M6 | 35 | 6 | HSK 63-A | 65 | 25 | 1 Stück |
137,80 €
|
|||
| 9 |
|
236018X160 | M8 | 35 | 8 | HSK 63-A | 160 | 28 | 1 Stück |
197,48 €
|
|||
| 27 |
|
23601750X130 | M24 x 2 | 74 | 50 | HSK 100-A | 130 | 100 | 1 Stück |
312,79 €
|
|||
| 9 |
|
23601712X160 | M12 | 48 | 12 | HSK 100-A | 160 | 42 | 1 Stück |
220,69 €
|
|||
| 24 |
|
23601732X160 | M20 x 2 | 64 | 32 | HSK 100-A | 160 | 72 | 1 Stück |
257,69 €
|
|||
| 47 |
|
2360125X200 | M18 x 2 | 60 | 25 | HSK 63-A | 200 | 65 | 1 Stück |
203,49 €
|
|||
| 21 |
|
2360114X80 | M12 | 48 | 14 | HSK 63-A | 80 | 44 | 1 Stück |
136,97 €
|
|||
| 17 |
|
2360112X100 | M12 | 48 | 12 | HSK 63-A | 100 | 42 | 1 Stück |
159,28 €
|
|||
| 4 |
|
2360178X160 | M8 | 41 | 8 | HSK 100-A | 160 | 28 | 1 Stück |
220,69 €
|
|||
| 12 |
|
2360110X100 | M10 | 41 | 10 | HSK 63-A | 100 | 35 | 1 Stück |
159,28 €
|
|||
| 15 |
|
2360110X200 | M10 | 41 | 10 | HSK 63-A | 200 | 35 | 1 Stück |
194,80 €
|
|||
| 5 |
|
23601710X80 | M10 | 41 | 10 | HSK 100-A | 80 | 35 | 1 Stück |
180,40 €
|
|||
| 40 |
|
2360120X80 | M20 | 53 | 20 | HSK 63-A | 80 | 52 | 1 Stück |
136,97 €
|
|||
| 50 |
|
2360132X200 | M20 x 2 | 64 | 32 | HSK 63-A | 200 | 72 | 1 Stück |
203,49 €
|
|||
| 14 |
|
23601716X100 | M14 | 51 | 16 | HSK 100-A | 100 | 48 | 1 Stück |
180,40 €
|
|||
| 4 |
|
236016X160 | M6 | 35 | 6 | HSK 63-A | 160 | 25 | 1 Stück |
197,48 €
|
|||
| 46 |
|
2360125X160 | M18 x 2 | 60 | 25 | HSK 63-A | 160 | 65 | 1 Stück |
205,81 €
|
|||
| 25 |
|
23601740X120 | M20 x 2 | 74 | 40 | HSK 100-A | 120 | 90 | 1 Stück |
231,99 €
|
|||
| 37 |
|
2360118X160 | M14 | 51 | 18 | HSK 63-A | 160 | 50 | 1 Stück |
197,48 €
|
|||
| 32 |
|
2360116X200 | M14 | 51 | 16 | HSK 63-A | 200 | 48 | 1 Stück |
194,80 €
|
|||
| 1 |
|
2360176X80 | M6 | 41 | 6 | HSK 100-A | 80 | 25 | 1 Stück |
180,40 €
|
|||
| 5 |
|
236016X200 | M6 | 35 | 6 | HSK 63-A | 200 | 25 | 1 Stück |
209,38 €
|
|||
| 17 |
|
23601718X160 | M14 | 51 | 18 | HSK 100-A | 160 | 50 | 1 Stück |
220,69 €
|
|||
| 54 |
|
2360140X200 | M20 x 2 | 64 | 40 | HSK 63-A | 200 | 80 | 1 Stück |
210,75 €
|
|||
| 28 |
|
2360116X100 | M14 | 51 | 16 | HSK 63-A | 100 | 48 | 1 Stück |
159,28 €
|
|||
| 20 |
|
23601725X100 | M18 x 2 | 60 | 25 | HSK 100-A | 100 | 65 | 1 Stück |
196,59 €
|
|||
| 2 |
|
236016X100 | M6 | 35 | 6 | HSK 63-A | 100 | 25 | 1 Stück |
159,28 €
|
|||
| 12 |
|
23601714X100 | M12 | 48 | 14 | HSK 100-A | 100 | 44 | 1 Stück |
180,40 €
|
|||
| 7 |
|
236018X100 | M8 | 35 | 8 | HSK 63-A | 100 | 28 | 1 Stück |
159,28 €
|
|||
| 26 |
|
23601740X160 | M20 x 2 | 74 | 40 | HSK 100-A | 160 | 90 | 1 Stück |
284,11 €
|
|||
| 6 |
|
23601710X160 | M10 | 41 | 10 | HSK 100-A | 160 | 35 | 1 Stück |
220,69 €
|
|||
| 20 |
|
2360112X200 | M12 | 48 | 12 | HSK 63-A | 200 | 42 | 1 Stück |
194,80 €
|
|||
| 22 |
|
2360114X100 | M12 | 48 | 14 | HSK 63-A | 100 | 44 | 1 Stück |
159,28 €
|
|||
| 16 |
|
2360112X80 | M12 | 48 | 12 | HSK 63-A | 80 | 42 | 1 Stück |
136,97 €
|
|||
| 33 |
|
2360118X80 | M14 | 51 | 18 | HSK 63-A | 80 | 50 | 1 Stück |
136,97 €
|
|||
| 2 |
|
2360176X160 | M6 | 41 | 6 | HSK 100-A | 160 | 25 | 1 Stück |
222,35 €
|
|||
| 15 |
|
23601716X160 | M14 | 51 | 16 | HSK 100-A | 160 | 48 | 1 Stück |
220,69 €
|
|||
| 53 |
|
2360140X160 | M20 x 2 | 64 | 40 | HSK 63-A | 160 | 80 | 1 Stück |
174,28 €
|
|||
| 16 |
|
23601718X100 | M14 | 51 | 18 | HSK 100-A | 100 | 50 | 1 Stück |
180,40 €
|
|||
| 52 |
|
2360140X125 | M20 x 2 | 64 | 40 | HSK 63-A | 125 | 80 | 1 Stück |
187,84 €
|
|||
| 19 |
|
23601720X160 | M16 | 53 | 20 | HSK 100-A | 160 | 52 | 1 Stück |
220,69 €
|
|||
| 49 |
|
2360132X160 | M20 x 2 | 64 | 32 | HSK 63-A | 160 | 72 | 1 Stück |
174,28 €
|
|||
| 30 |
|
2360116X160 | M14 | 51 | 16 | HSK 63-A | 160 | 48 | 1 Stück |
197,48 €
|
|||
| 14 |
|
2360110X160 | M10 | 41 | 10 | HSK 63-A | 160 | 35 | 1 Stück |
197,48 €
|
|||
| 3 |
|
2360178X80 | M8 | 41 | 8 | HSK 100-A | 80 | 28 | 1 Stück |
180,40 €
|
|||
| 39 |
|
2360118X200 | M14 | 51 | 18 | HSK 63-A | 200 | 50 | 1 Stück |
194,80 €
|
|||
| 13 |
|
23601714X160 | M12 | 48 | 14 | HSK 100-A | 160 | 44 | 1 Stück |
220,69 €
|
|||
| 24 |
|
2360114X160 | M12 | 48 | 14 | HSK 63-A | 160 | 44 | 1 Stück |
197,48 €
|
|||
| 8 |
|
23601712X100 | M12 | 48 | 12 | HSK 100-A | 100 | 42 | 1 Stück |
180,40 €
|
|||
| 26 |
|
2360116X80 | M14 | 51 | 16 | HSK 63-A | 80 | 48 | 1 Stück |
136,97 €
|
|||
| 35 |
|
2360118X100 | M14 | 51 | 18 | HSK 63-A | 100 | 50 | 1 Stück |
159,28 €
|
|||
| 41 |
|
2360120X100 | M16 | 53 | 20 | HSK 63-A | 100 | 52 | 1 Stück |
159,28 €
|
|||
| 48 |
|
2360132X110 | M20 x 2 | 64 | 32 | HSK 63-A | 110 | 72 | 1 Stück |
151,31 €
|
|||
| 19 |
|
2360112X160 | M12 | 48 | 12 | HSK 63-A | 160 | 42 | 1 Stück |
197,48 €
|
|||
| 44 |
|
2360120X200 | M16 | 53 | 20 | HSK 63-A | 200 | 52 | 1 Stück |
194,80 €
|
|||
| 10 |
|
236018X200 | M8 | 35 | 8 | HSK 63-A | 200 | 28 | 1 Stück |
194,80 €
|
|||
| 23 |
|
23601732X120 | M20 x 2 | 64 | 32 | HSK 100-A | 120 | 72 | 1 Stück |
204,62 €
|
|||
| 25 |
|
2360114X200 | M12 | 48 | 14 | HSK 63-A | 200 | 44 | 1 Stück |
244,72 €
|
|||
| 6 |
|
236018X65 | M8 | 35 | 8 | HSK 63-A | 65 | 28 | 1 Stück |
136,97 €
|
|||
| 18 |
|
23601720X100 | M16 | 53 | 20 | HSK 100-A | 100 | 52 | 1 Stück |
180,40 €
|
|||
| 45 |
|
2360125X110 | M18 x 2 | 60 | 25 | HSK 63-A | 110 | 65 | 1 Stück |
141,67 €
|
|||
| 43 |
|
2360120X160 | M16 | 53 | 20 | HSK 63-A | 160 | 52 | 1 Stück |
197,48 €
|
