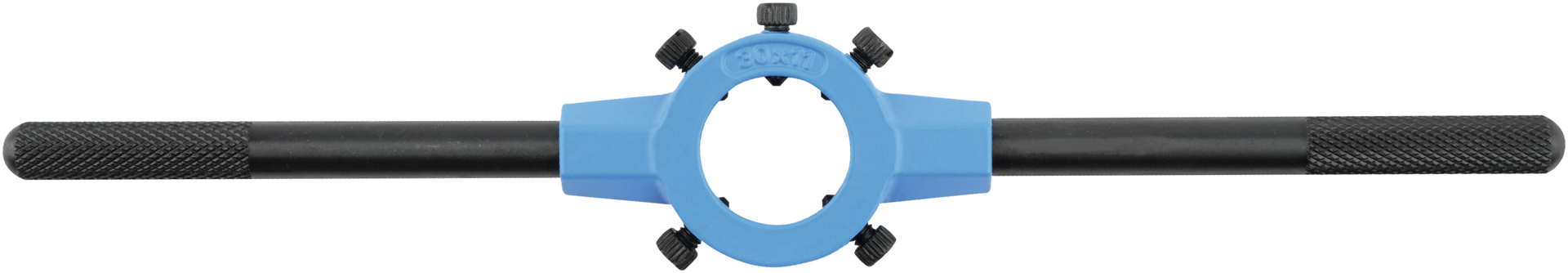

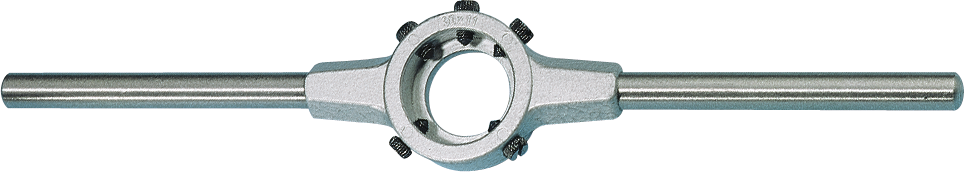

Schneideisenhalter DIN225 Zinkdruckguss M7-9/MF7-9 25x9mm
Vergleichen
| Einsatz: | zur direkten Aufnahme geschlossener und geschlitzter Schneideisen |
|---|---|
| Norm: | EN 22568 |
Ausführungen
| Position | Code | für Schneideisen MF | H (mm) | für Schneideisen Whitworth-Gewinde | D-Innen (mm) | für Schneideisen M | L (mm) | Anzahl | VE | Preis/VE | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 |
|
1595590X22 | M45-52 | 22 | G1 3/8"-G1 5/8" | 90 | - | 900 | 1 Stück |
132,45 €
|
|||
| 10 |
|
1595555X16 | M22-26 | 16 | G5/8"-G3/4" | 55 | - | 560 | 1 Stück |
20,35 €
|
|||
| 01 |
|
1595516X5 | M2-2,6 | 5 | - | 16 | M1-2,6 | 160 | 1 Stück |
5,00 €
|
|||
| 21 |
|
15955120X36 | - | 36 | - | 120 | M64-71 | 956 | 1 Stück |
399,84 €
|
|||
| 07 |
|
1595538X14 | - | 14 | - | 38 | M12-14 | 315 | 1 Stück |
11,66 €
|
|||
| 08 |
|
1595545X14 | M16-20 | 14 | G3/8"-G1/2" | 45 | - | 450 | 1 Stück |
15,83 €
|
|||
| 09 |
|
1595545X18 | - | 18 | - | 45 | M16-20 | 450 | 1 Stück |
15,83 €
|
|||
| 13 |
|
1595565X25 | - | 25 | - | 65 | M27-36 | 630 | 1 Stück |
28,68 €
|
|||
| 20 |
|
15955120X22 | M64-71 | 22 | G2 1/4"-G2 3/4" | 120 | - | 956 | 1 Stück |
399,84 €
|
|||
| 15 |
|
1595575X30 | - | 30 | - | 75 | M38-42 | 800 | 1 Stück |
94,13 €
|
|||
| 11 |
|
1595555X22 | - | 22 | - | 55 | M22-24 | 560 | 1 Stück |
20,35 €
|
|||
| 12 |
|
1595565X18 | M27-36 | 18 | G7/8"-G1" | 65 | - | 630 | 1 Stück |
28,68 €
|
|||
| 14 |
|
1595575X20 | M38-42 | 20 | G1 1/8"-G1 1/4" | 75 | - | 800 | 1 Stück |
92,46 €
|
|||
| 06 |
|
1595538X10 | M12-15 | 10 | G1/4" | 38 | - | 315 | 1 Stück |
11,19 €
|
|||
| 19 |
|
15955105X36 | - | 36 | - | 105 | M54-63 | 975 | 1 Stück |
206,11 €
|
|||
| 17 |
|
1595590X36 | - | 36 | - | 90 | M45-52 | 900 | 1 Stück |
134,47 €
|
|||
| 03 |
|
1595520X7 | M5-6 | 7 | - | 20 | M4,5-6 | 200 | 1 Stück |
5,47 €
|
|||
| 04 |
|
1595525X9 | M7-9 | 9 | - | 25 | M7-9 | 224 | 1 Stück |
6,31 €
|
|||
| 02 |
|
1595520X5 | M3-4(5) | 5 | - | 20 | M3-4 | 200 | 1 Stück |
5,47 €
|
|||
| 18 |
|
15955105X22 | M54-63 | 22 | G1 3/4" -G2" | 105 | - | 975 | 1 Stück |
194,92 €
|
|||
| 05 |
|
1595530X11 | M10-11 | 11 | G1/8" | 30 | M10-11 | 280 | 1 Stück |
8,21 €
|
